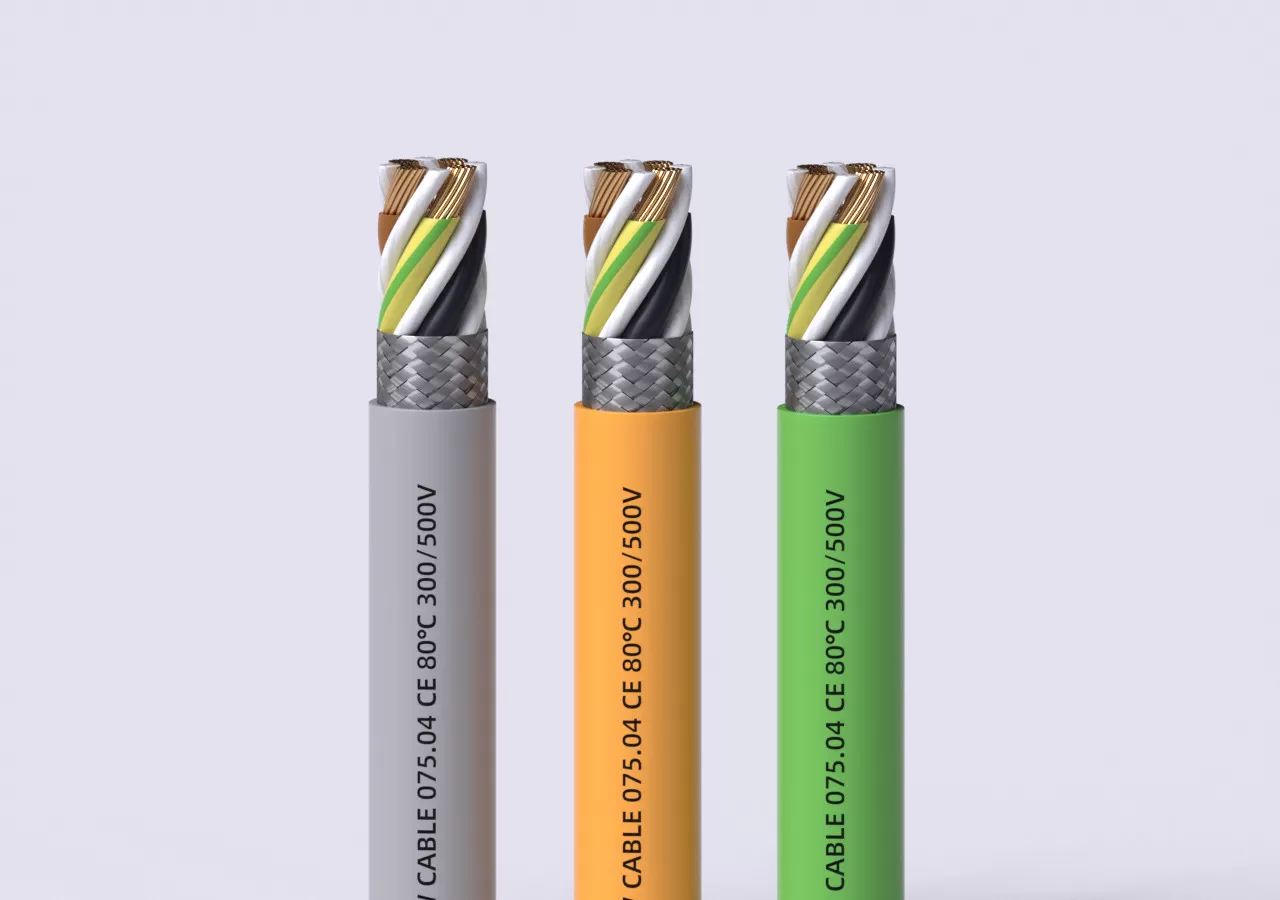

Anti-Jamming, High flexible, wear resistant, Oil resistant, bending resistant, hydrolysis resistant, thermostable and cold-resistant

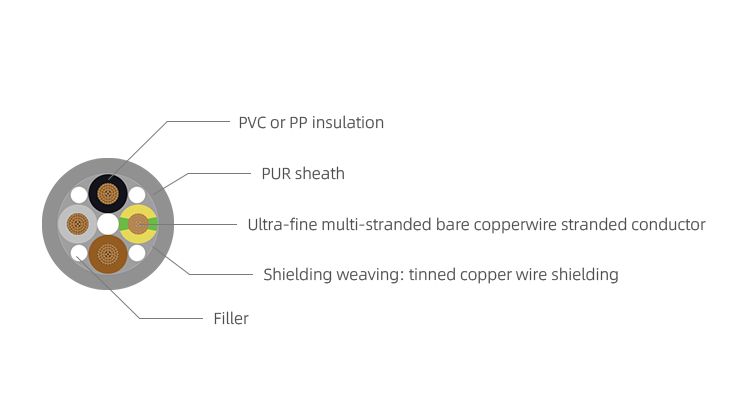

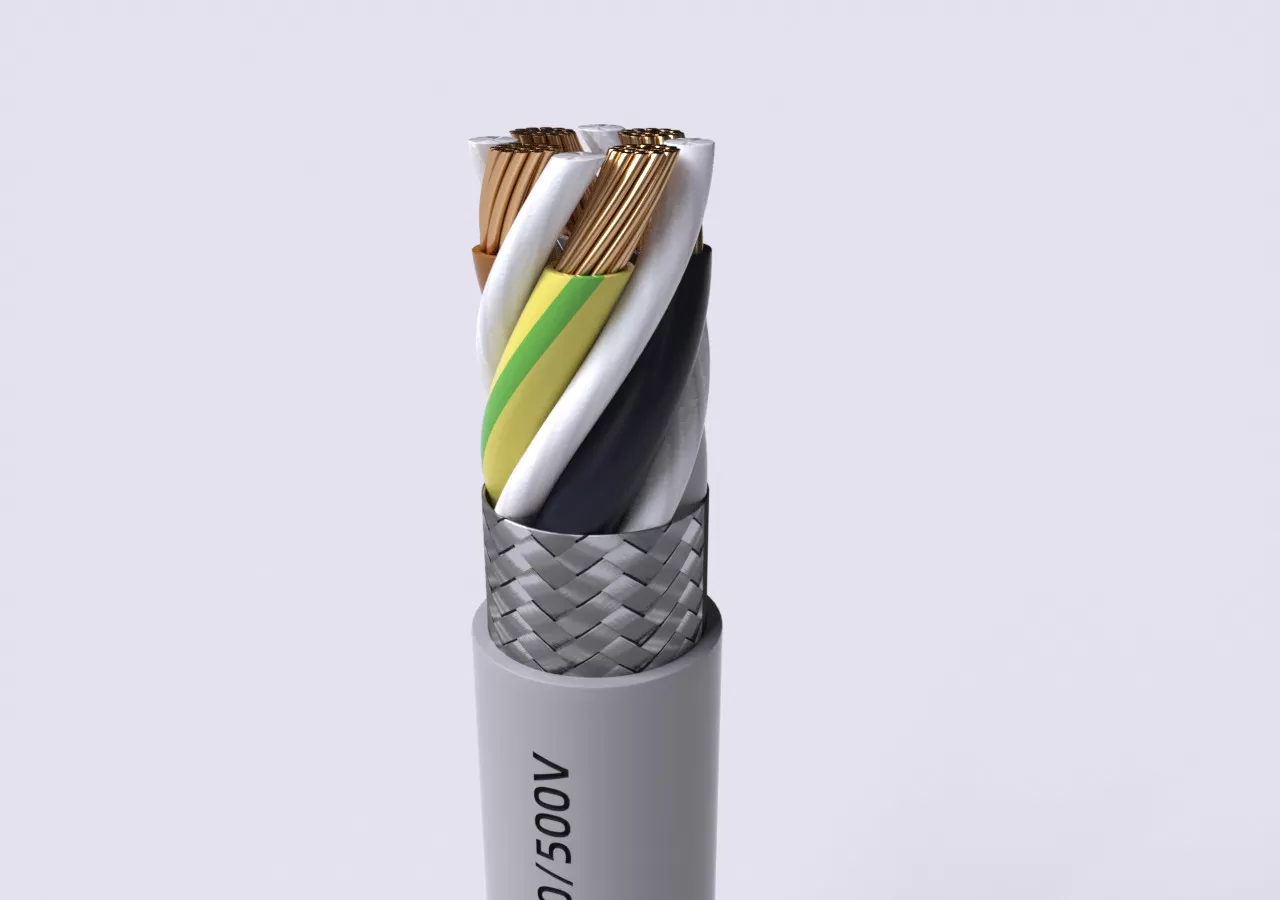

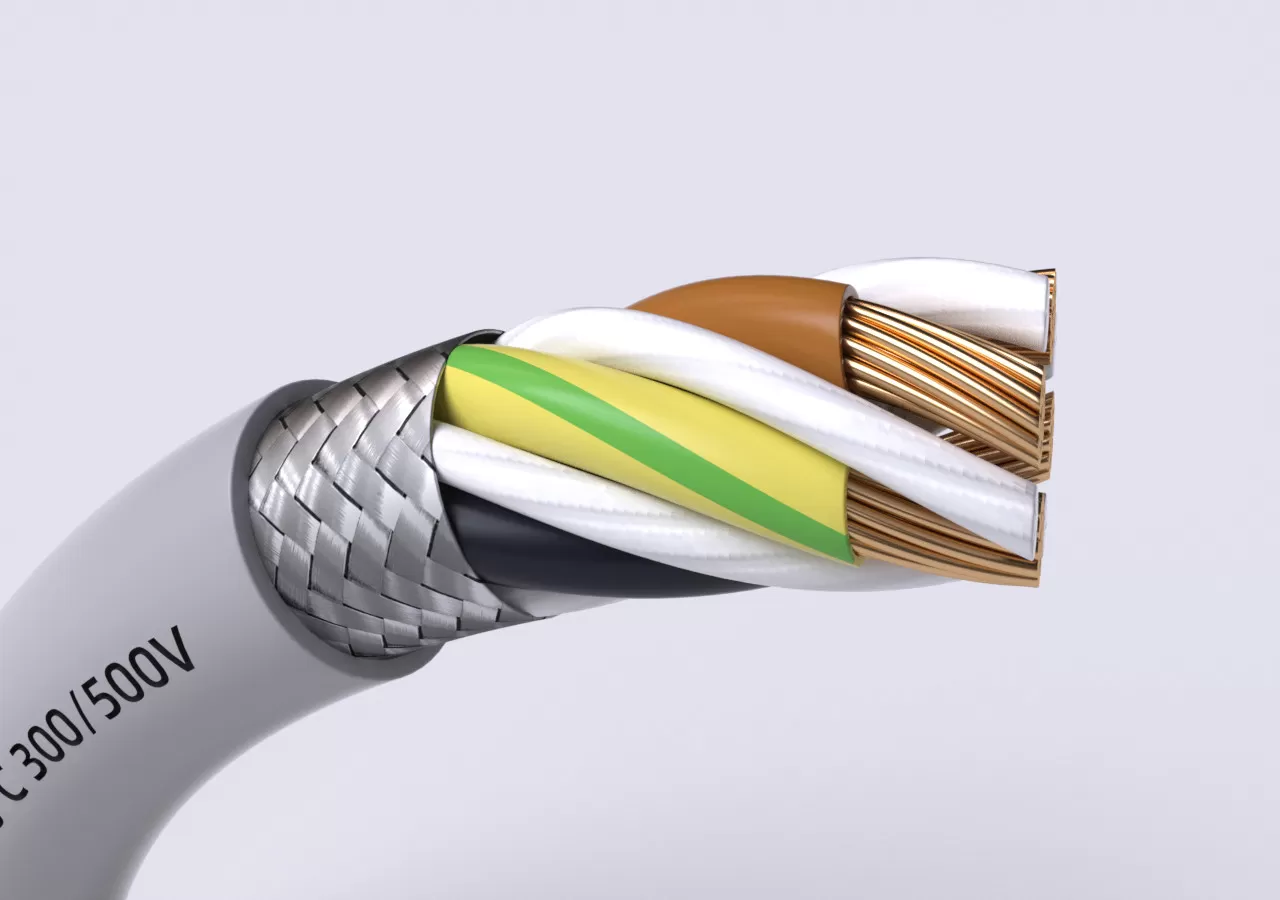

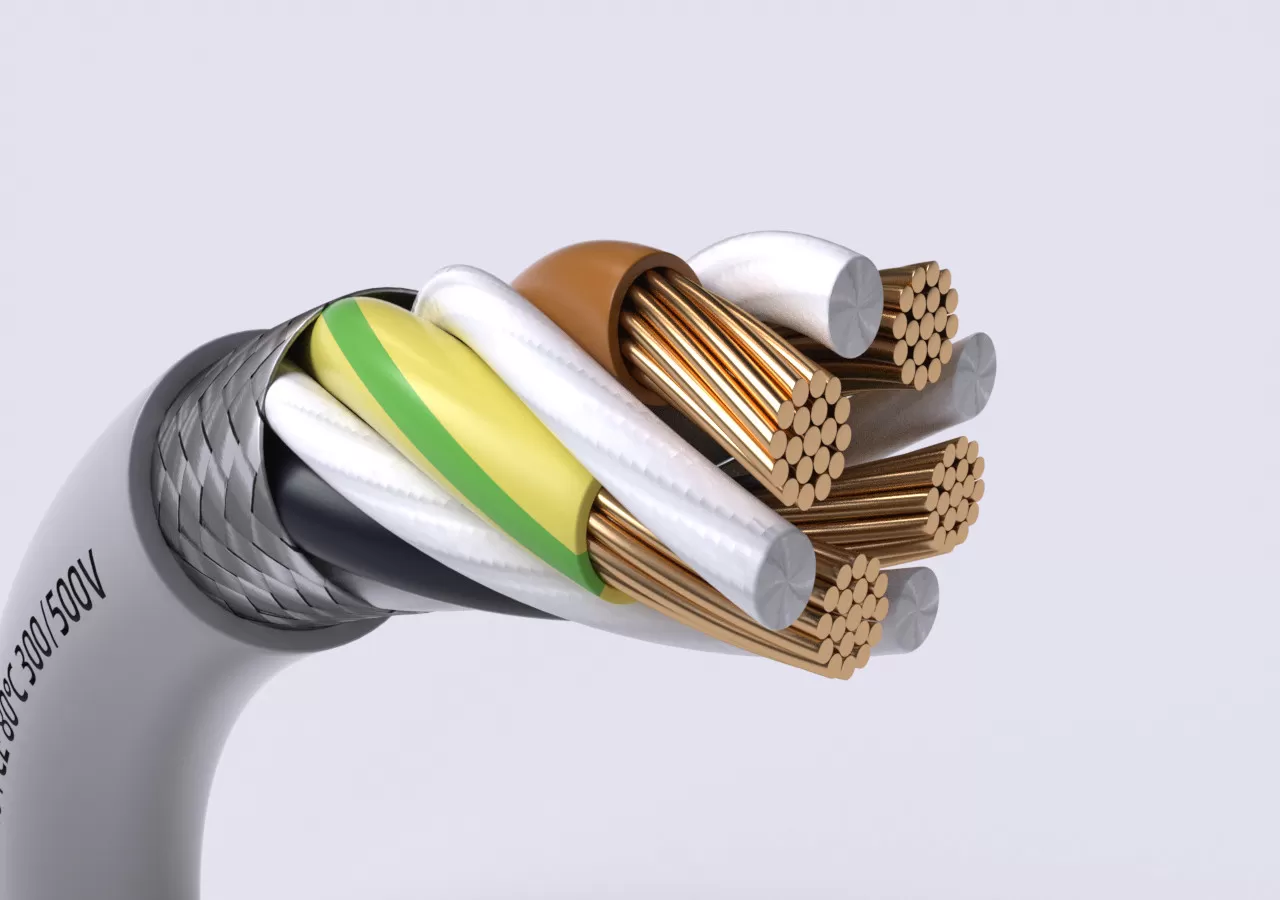

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).
Insulation: PP or TPE insulation mixture.
Core color: Cable core: Black core with white numbers, one core in yellow/green.
Control wiring: Black core wire with white numbers.
Twisted pair: The optimal pitch is twisted in pairs.
Sub shielding: Control the individual tin plated copper wire shielding of the line, with an optical coverage of about 85%.
Core wire stranding: The cable core and control pair are twisted together at short pitch.
Total shielding: Tinned copper wire woven shielding, with optical coverage ofabout 85%.
Outer sheath: PUR polyurethane, adjusted to meet drag chain requirements; Colors can be matched according to customer requirements.
Minimum bending radius; mobile application: 75xd: Fixed installation: 4xd.
Usage temperature range: drag chain: -25°C to+80°C,fixed:-40° C to+80° C .
Rated voltage: 600/1000V.
Test voltage: 4000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Has excellent UVresistance, mechanical stress resistance, and oil resistance;
Flame retardancy in accordance with IEC 60332-1-2CEI 20-35，FT1. Standards;
Designed for bending cycles up to 10 million or more in power drag dhains.
Application Scope
Suitable for use with servo motors produced by leading motor manufadturers;
Heavy load extension lines in power drag chain applications;
Suitable for assembly and picking placement eauipment, assembly lines, production lines and all machines;
Used for power drag chains or moving mechanical components;
Especially suitable for damp areas of machine tools and transmission lines.
Note: G=ncluding yellow green grounding wire protection core wire.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| FD-800CP-4-1.5 | 4G1.5 | 9.2 | 140 |
| FD-800CP-4-2.5 | 4G2.5 | 11 | 197 |
| FD-800CP-4-4.0 | 4G4.0 | 12.5 | 268 |
| FD-800CP-4-6.0 | 4G6.0 | 14.5 | 397 |
| FD-800CP-4-10.0 | 4G10.0 | 17.8 | 596 |
| FD-800CP-4-16.0 | 4G16.0 | 23.2 | 985 |
| FD-800CP-4-25.0 | 4G25.0 | 27.6 | 1446 |
| FD-800CP-4-35.0 | 4G35.0 | 31.8 | 1968 |
| FD-800CP-4-50.0 | 4G50.0 | 36 | 2618 |
| FD-800CP-4-1.5-1P1.5 | 4G1.5+(2x1.5) | 11.6 | 261 |
| FD-800CP-4-2.5-1P1.5 | 4G2.5+(2x1.5) | 13.4 | 318 |
| FD-800CP-4-4.0-1P1.5 | 4G4.0+(2x1.5) | 14.8 | 385 |
| FD-800CP-4-6.0-1P1.5 | 4G6.0+(2x1.5) | 16.8 | 486 |
| FD-800CP-4-10.0-1P1.5 | 4G10.0+(2x1.5) | 19.4 | 701 |
| FD-800CP-4-16.0-1P1.5 | 4G16.0+(2x1.5) | 24.2 | 1048 |
| FD-800CP-4-25.0-1P1.5 | 4G25.0+(2x1.5) | 28.7 | 1532 |
| FD-800CP-4-35.0-1P1.5 | 4G35.0+(2x1.5) | 32.5 | 2097 |
| FD-800CP-4-50.0-1P1.5 | 4G50.0+(2x1.5) | 36.5 | 2721 |
| FD-800CP-4-1.5-2P0.75 | 4G1.5+2x(2x0.75) | 12.2 | 313 |
| FD-800CP-4-2.5-2P1.0 | 4G2.5+2x(2x1.0) | 14.6 | 395 |
| FD-800CP-4-4.0-2P1.0 | 4G4.0+2x(2x1.0) | 16.1 | 466 |
| FD-800CP-4-4.0-2P1.5 | 4G4.0+2x(2x1.5) | 16.3 | 485 |
| FD-800CP-4-6.0-2P1.5 | 4G6.0+2x(2x1.5) | 18.1 | 588 |
| FD-800CP-4-10.0-2P1.5 | 4G10.0+2x(2x1.5) | 21.8 | 819 |
| FD-800CP-4-16.0-2P1.5 | 4G16.0+2x(2x1.5) | 25.5 | 1135 |
| FD-800CP-4-25.0-2P1.5 | 4G25.0+2x(2x1.5) | 30.0 | 1559 |
| FD-800CP-4-35.0-2P1.5 | 4G35.0+2x(2x1.5) | 33.0 | 2093 |
| FD-800CP-4-50.0-2P2.5 | 4G50.0+2x(2x2.5) | 36.8 | 2920 |
