In today’s increasingly connected world, Ethernet cables remain a cornerstone of wired internet networks, whether in homes, offices, or industrial settings. While Wi-Fi may dominate due to its convenience, Ethernet cables still offer unmatched reliability, stability, and speed for tasks requiring high bandwidth, like online gaming, streaming, or data transfers. However, a common concern for many users is: "Are Ethernet cables bendable?" In this article, we'll explore whether Ethernet cables can withstand bending, what factors influence their flexibility, and how improper handling might affect their performance and lifespan.

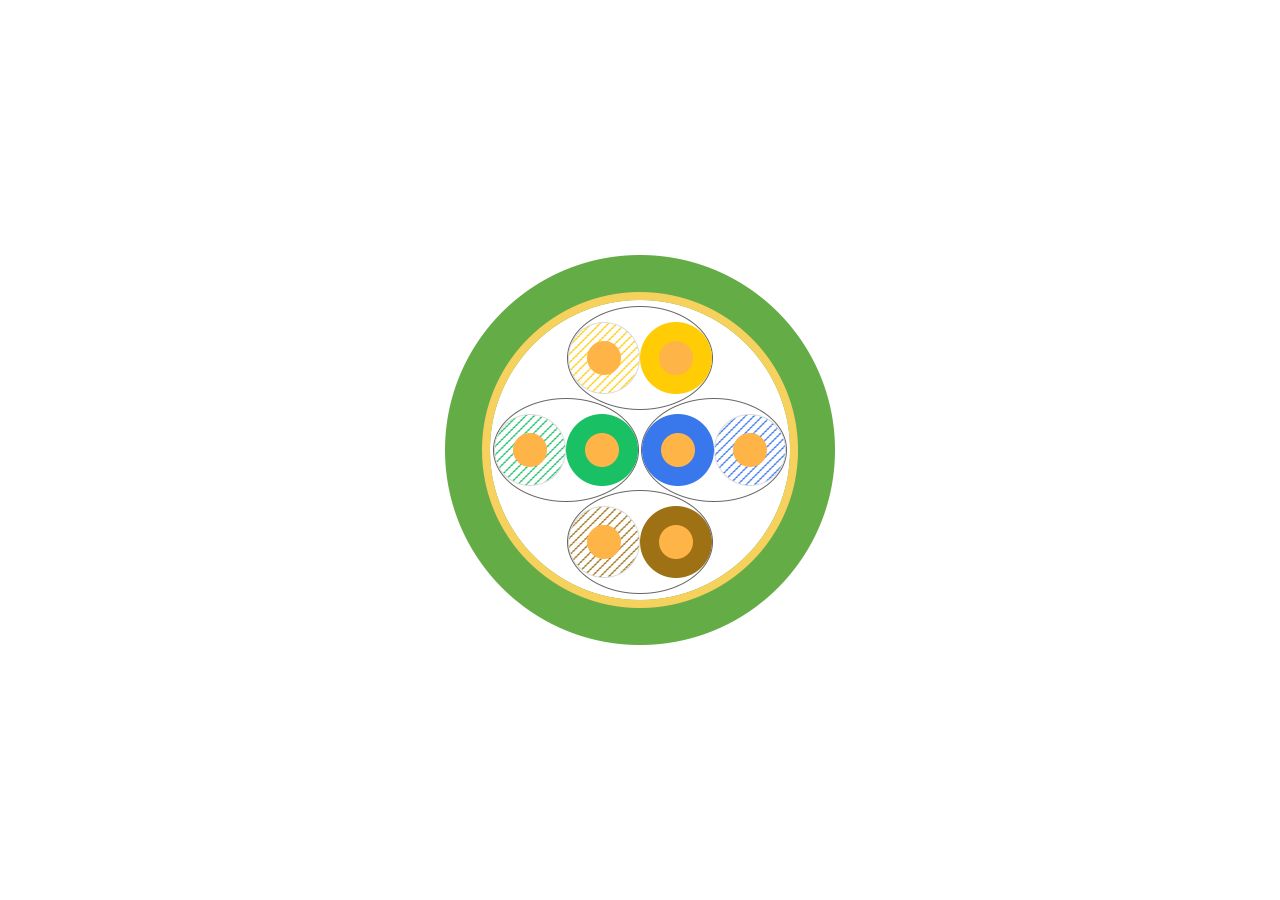

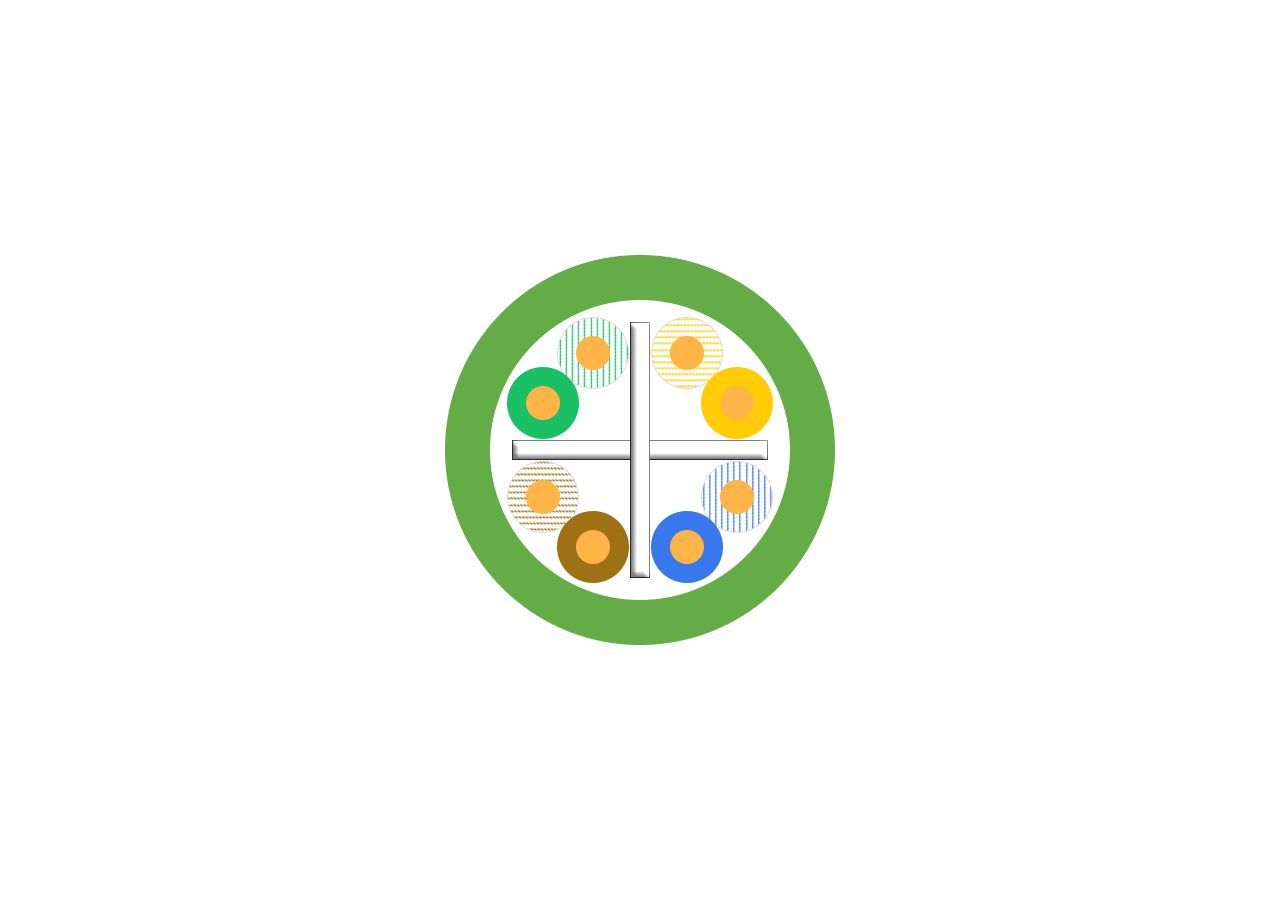

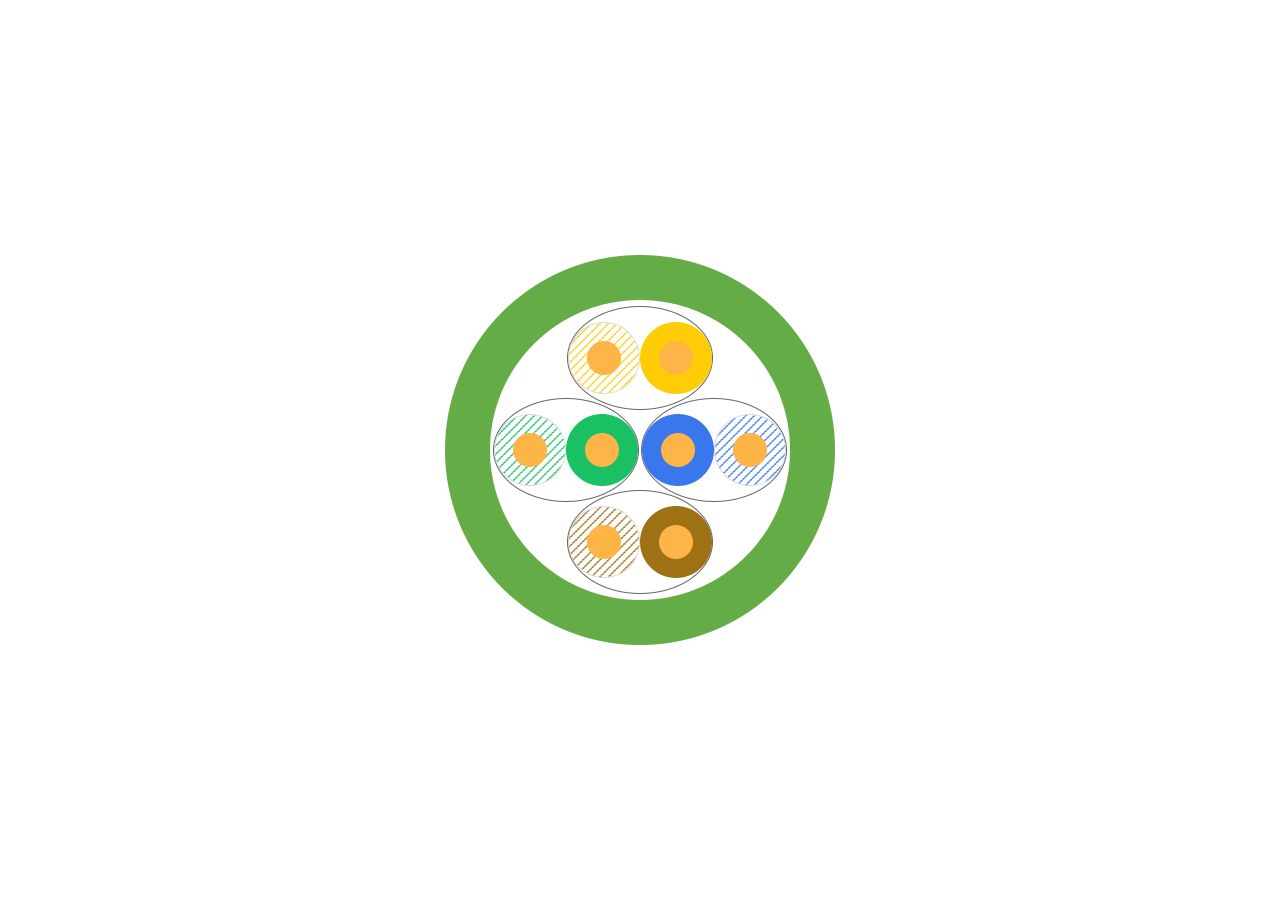

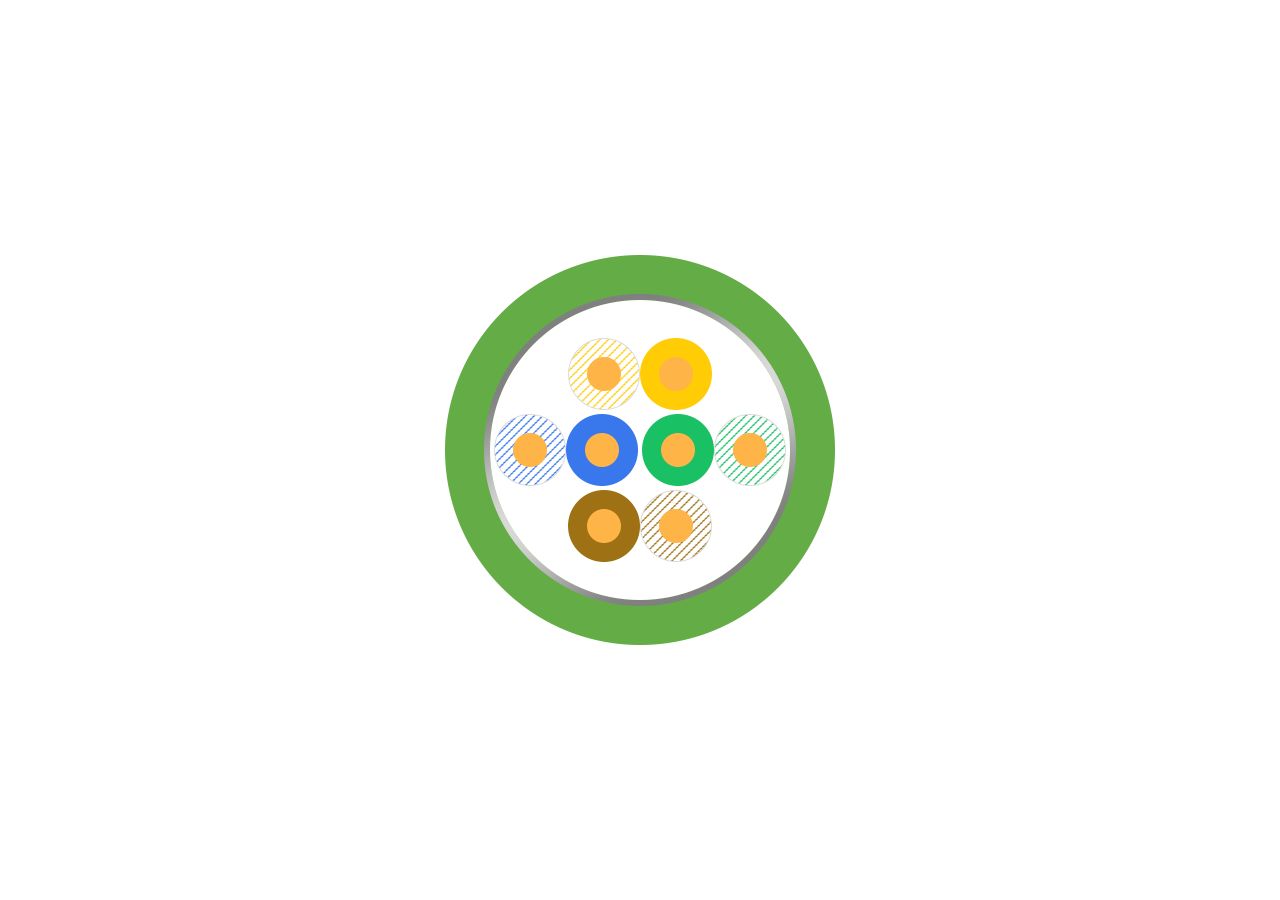

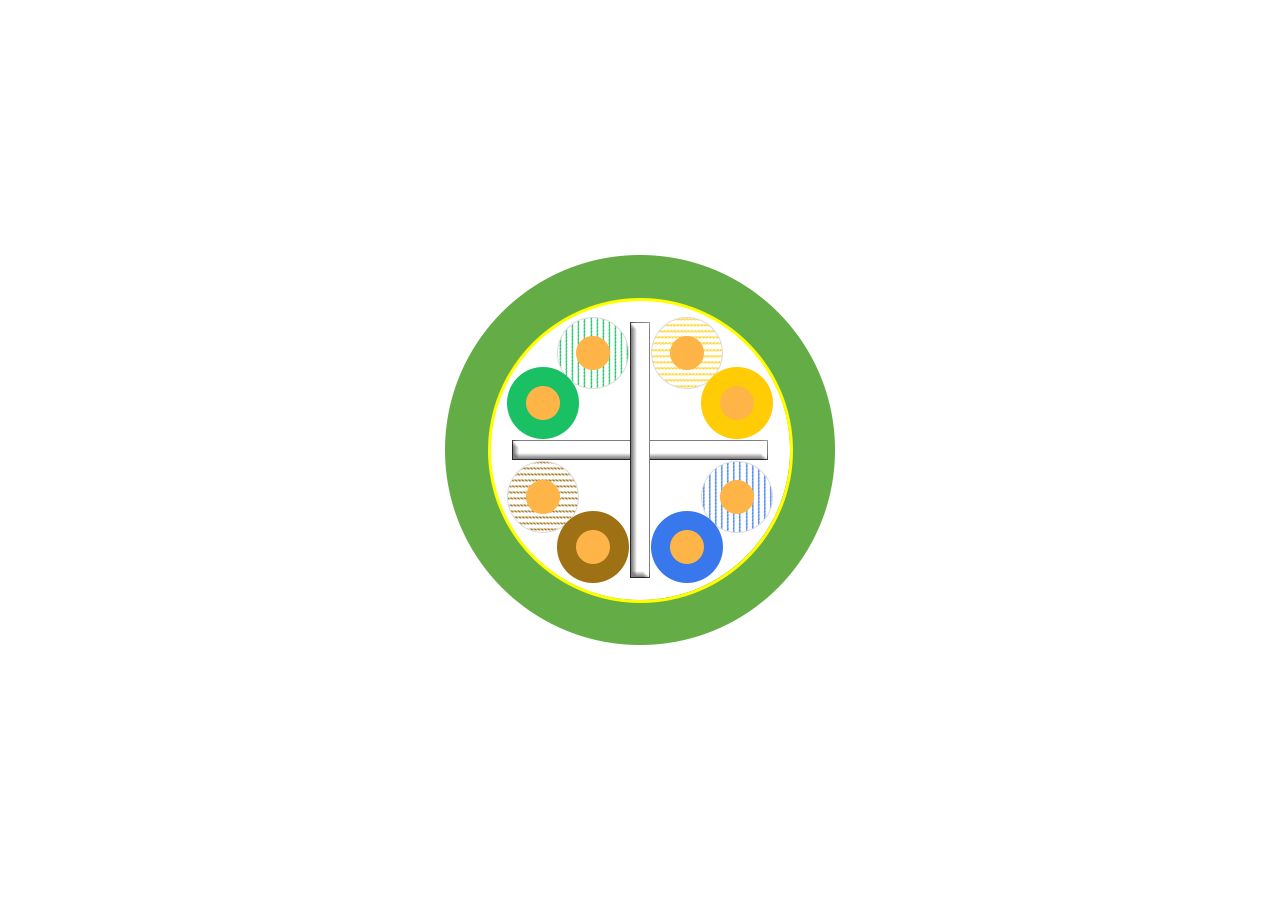

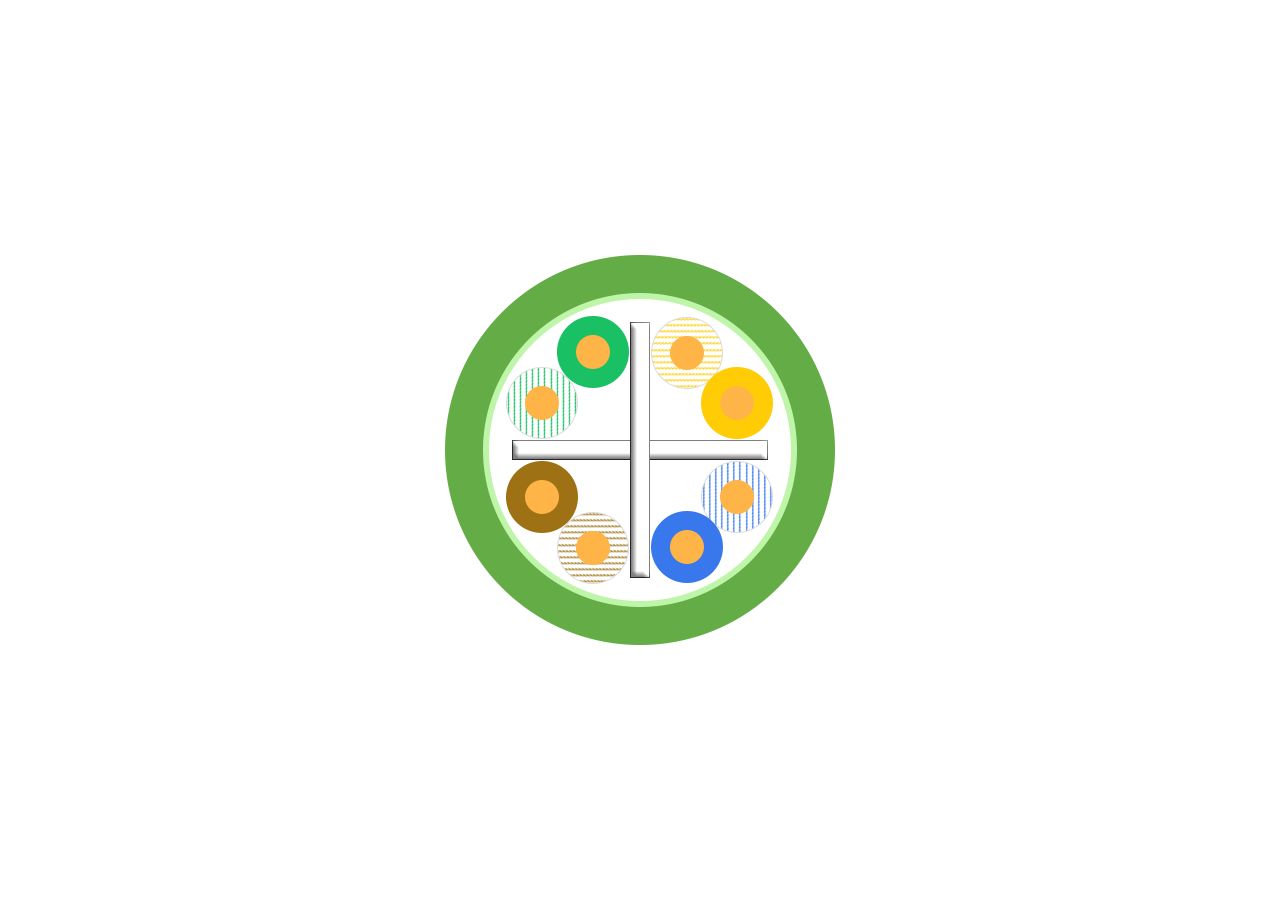

Before delving into whether Ethernet cables are bendable, it's important to understand their structure. Ethernet cables, such as Cat5e, Cat6, Cat6a, and Cat7, consist of several twisted pairs of insulated copper wires. These wires are typically surrounded by protective layers, including plastic sheathing and shielding, to reduce electromagnetic interference (EMI) and maintain data integrity.
Twisted Pairs: The copper wires inside Ethernet cables are twisted into pairs to minimize crosstalk and signal interference.
Sheathing: The outer layer, usually made of PVC (Polyvinyl Chloride) or LSZH (Low Smoke Zero Halogen), provides protection against physical damage.
Shielding (Optional): Higher-category cables (like Cat6a and Cat7) may include additional shielding (S/FTP or U/FTP) to enhance performance in high-interference environments.
Yes, Ethernet cables are bendable, but their flexibility has limits. The flexibility of Ethernet cables depends on factors like the cable type, the materials used in the insulation and sheathing, and the internal construction. Most standard Ethernet cables can be bent to a certain degree without any issues, but improper bending can lead to performance degradation or permanent damage.
Ethernet cables from Cat5e to Cat7 have varying levels of rigidity due to differences in shielding and the thickness of the insulation. For example, Cat5e cables are generally more flexible than Cat7 cables because the latter have additional shielding for better performance, making them stiffer.
Flat Ethernet cables are more flexible than their round counterparts, making them ideal for installations where tight bends are necessary, such as running cables along walls or under carpets.
The outer jacket material influences how much the cable can bend. PVC jackets are common and offer decent flexibility, while LSZH jackets are less flexible but are used in environments where reducing toxic fumes is a priority during a fire.
Ethernet cables have a recommended minimum bend radius, typically about four times the cable’s diameter. For example, if an Ethernet cable has a diameter of 6mm, the minimum bend radius would be around 24mm. Bending a cable beyond this radius can result in damage to the internal copper wires, leading to intermittent connectivity or data loss.
While Ethernet cables can be bent, it is crucial to do so properly. Excessive bending or kinking can cause damage to the copper wires inside, disrupt the twisted pairs, or break the shielding, all of which can degrade signal quality. In severe cases, this can result in data packet loss, slower speeds, or even complete failure of the connection.
BICSI (Building Industry Consulting Service International) reports that poor cable management is one of the leading causes of network failures.
Tight Corners: Running Ethernet cables along baseboards or behind furniture often requires careful bending. Avoid sharp angles to prevent damage.
Cable Management: In data centers, bundling cables improperly can lead to kinks. Use organizers and Velcro ties to reduce strain.
Outdoor Installations: Outdoor cables are typically stiffer to protect against environmental elements but may require careful handling during installation.
Do not exceed the minimum bend radius.
Use cable organizers and clips to avoid sharp bends.
Avoid pulling or tugging on cables to prevent stretching or damage.
Store cables in loose loops when not in use.
A well-known example occurred during the deployment of high-speed fiber-optic internet in urban areas. ISPs discovered that sharp bends in fiber cables led to frequent outages and reduced speeds. Although Ethernet cables are not as sensitive as fiber optics, improper bending can still cause similar issues, particularly for high-speed Cat6a or Cat7 cables.
In conclusion, Ethernet cables are indeed bendable, but with limits. Understanding the structure and proper handling of these cables is essential for maintaining their performance. Whether you're setting up a home network or managing a large-scale data center, following best practices for cable management can prevent unnecessary damage and extend the lifespan of your Ethernet cables
