FD-70Y Single-core Power Cable

Oil resistant, wear resistant, bending resistant

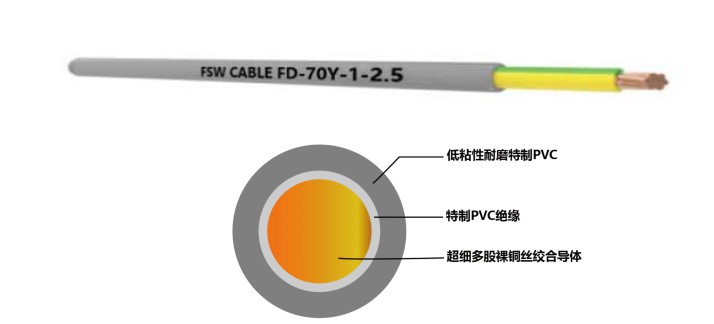

Sketch Map

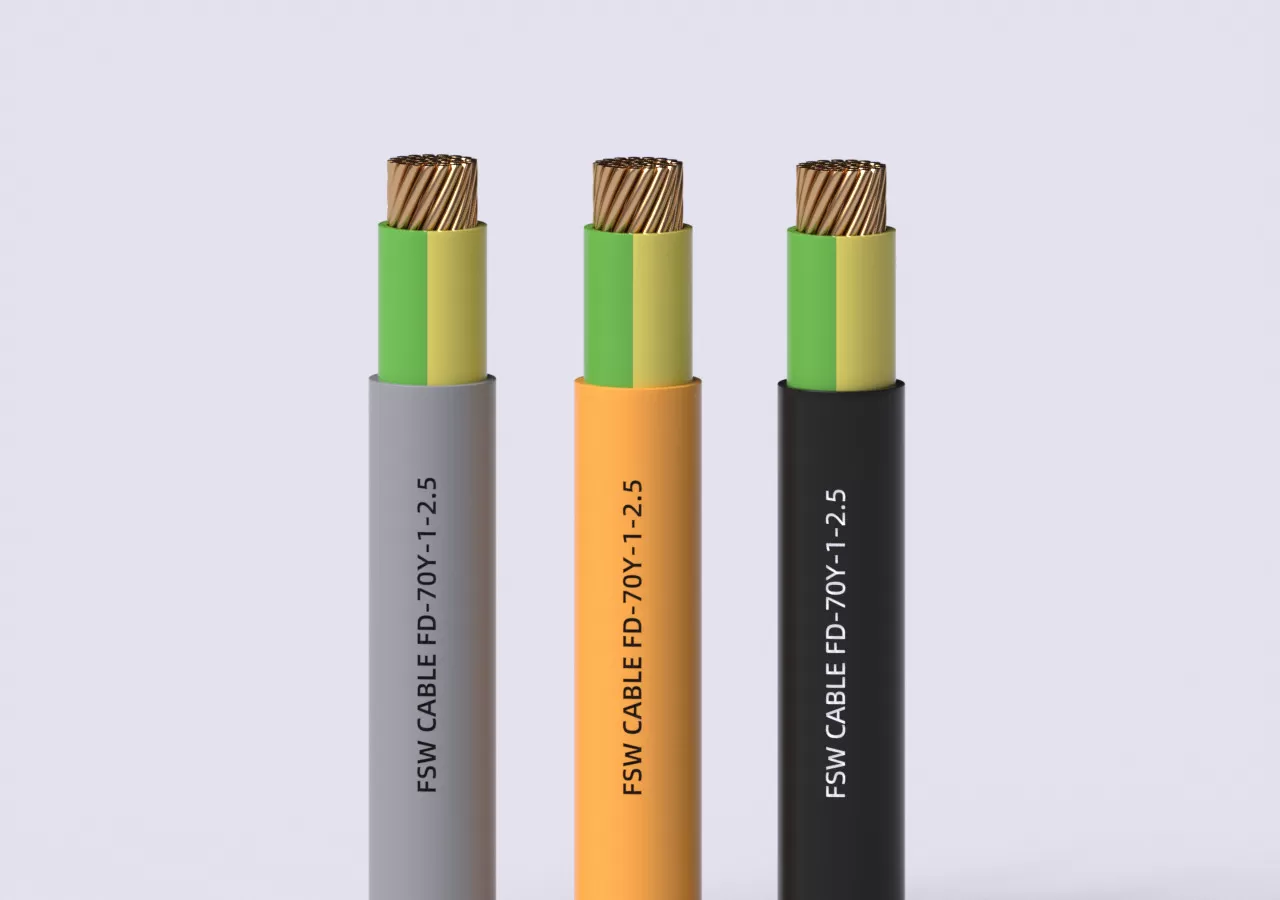

FD-70Y Single-core Power Cable

Technical Parameter

Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).

Insulation: Special PVC

Core wire colors: gray, black, yellow/green, or other colors can becustomized as needed.

Outer sheath: Low viscosity and wear-resistant PVC, adiusted to meetdrag chain requirements; Colors can be matched according to customer requirements.

Minimum bending radius: mobile application: 7.5xd;

Fixed installation: 4xd.

Operating temperature range: Mobile installation:-5℃ to+70℃; Fixed installation:-20℃to+80℃.

Test voltage: 4000V.

Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.

Product Characteristics

Excellent wear resistance, bending resistance, and oil resistance.

Flame retardancy meetsIEC60332-1-2CE120-35.FT1VW-1.

Designed for up to 5 million bending cycles in power drag chains.

Application Scope

Suitable for mobile use in automatic machine drag chains.


Product Standards

Material codeNumber of cores and nominal cross-section of conductor(mm²)Approximate outer diameter(mm²)Cable weight kg/km
FD-70Y-1-2.51*2.55.248
FD-70Y-1-4.01*4.06.070
FD-70Y-1-6.01*6.07.2101
FD-70Y-1-10.01*10.09.0158
FD-70Y-1-16.01*16.09.9217
FD-70Y-1-25.01*25.011.3307
FD-70Y-1-35.01*35.013.1427
FD-70Y-1-50.01*50.015.9611
