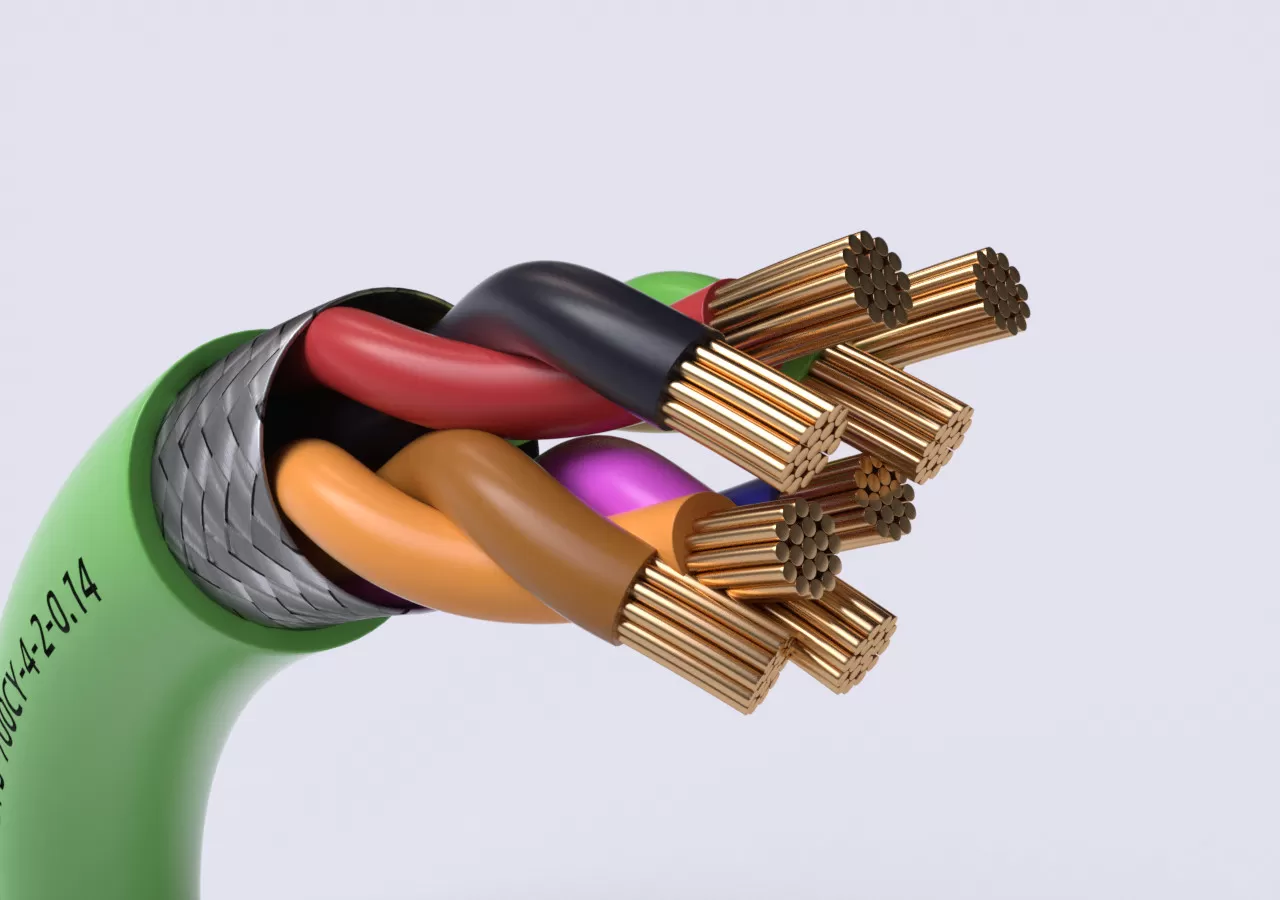

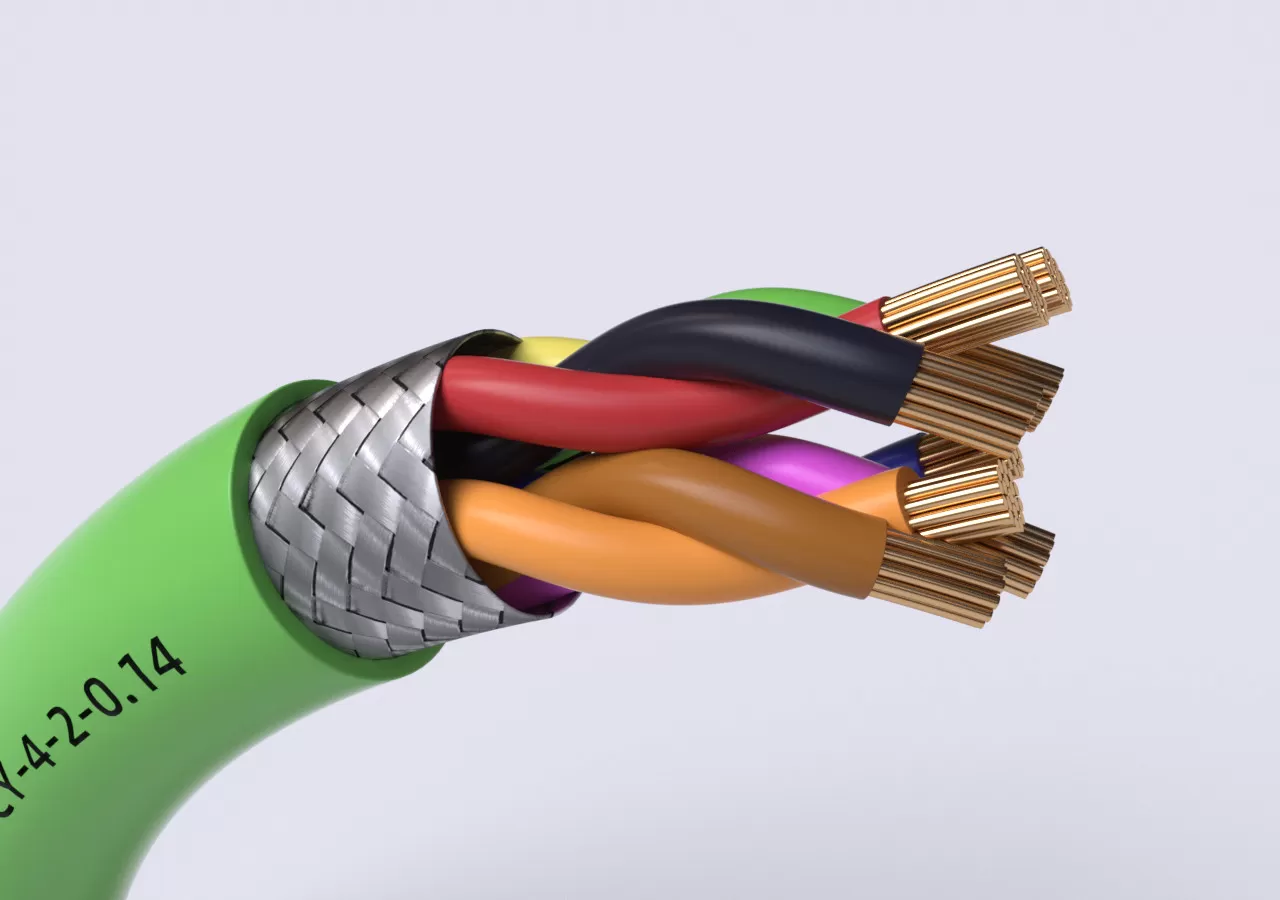

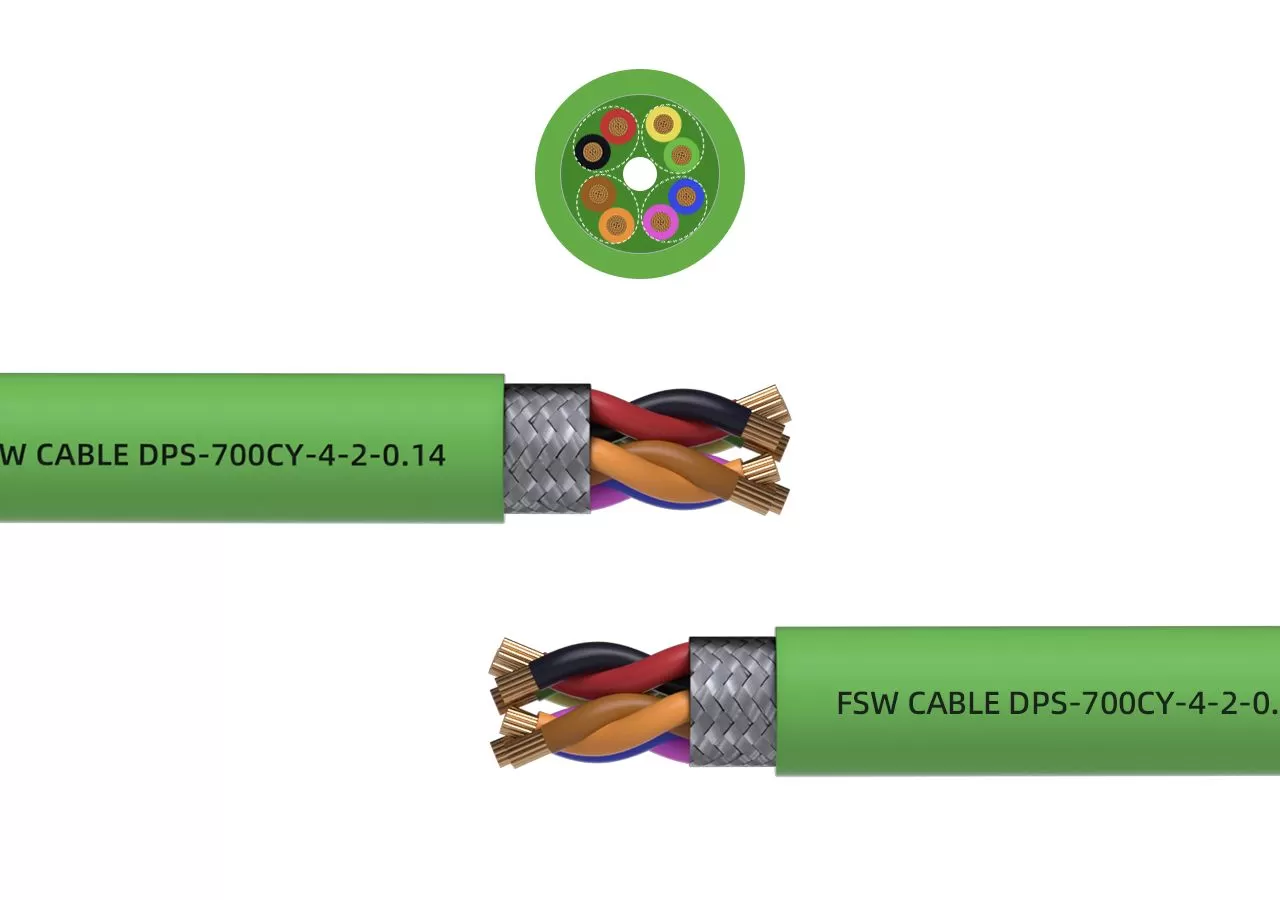

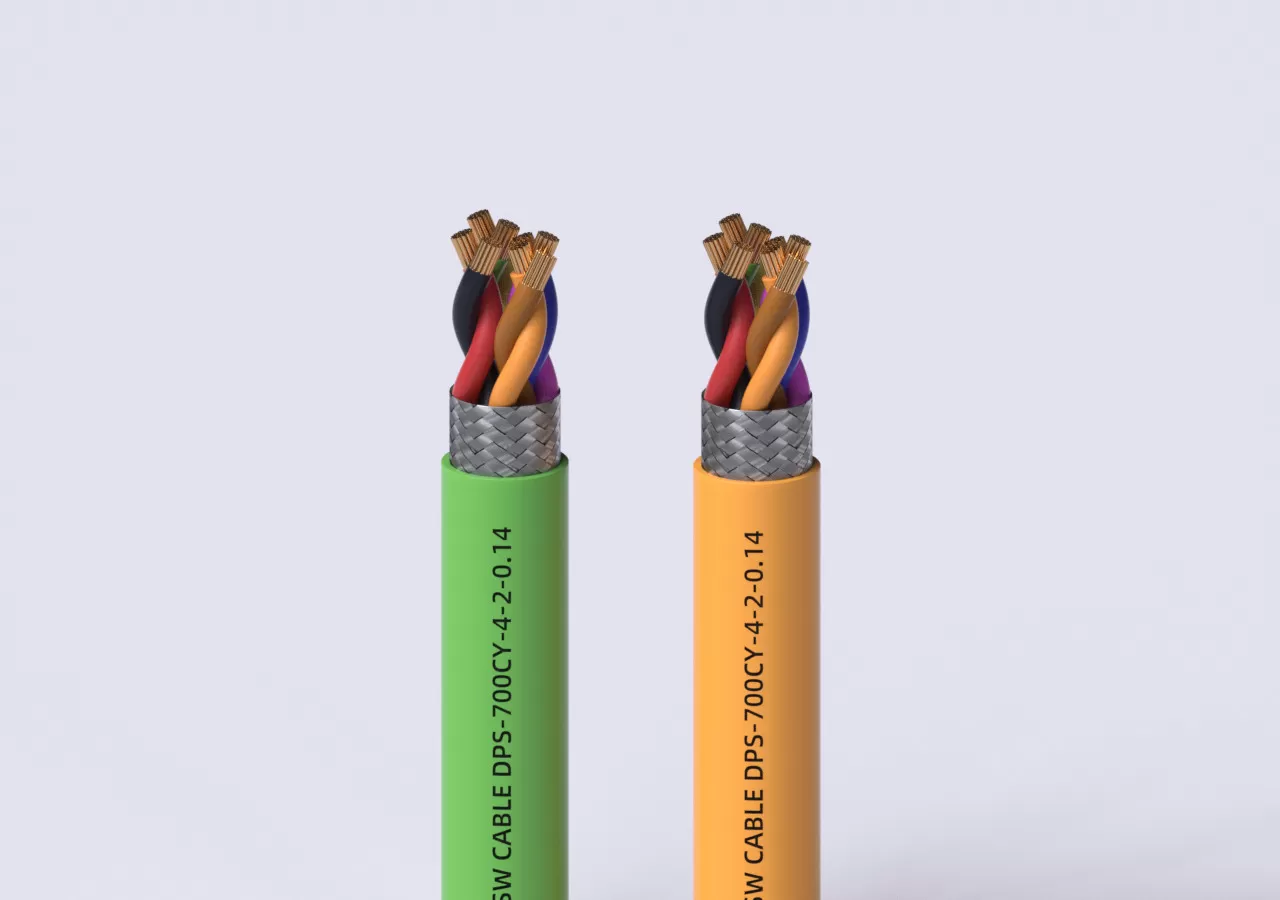

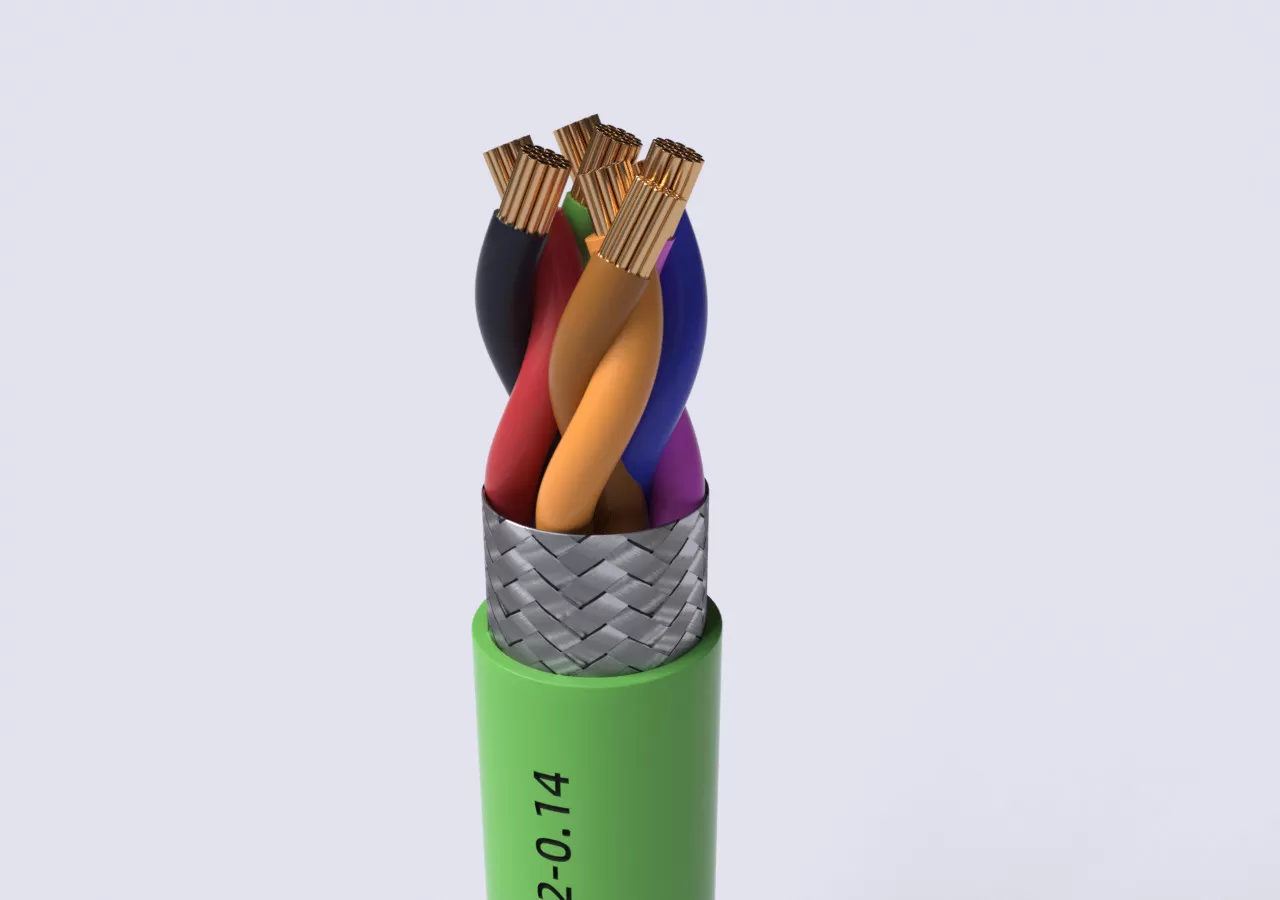

Oil resistant, wear resistant, bending resistant, twisted pair, with shield, anti-Jamming

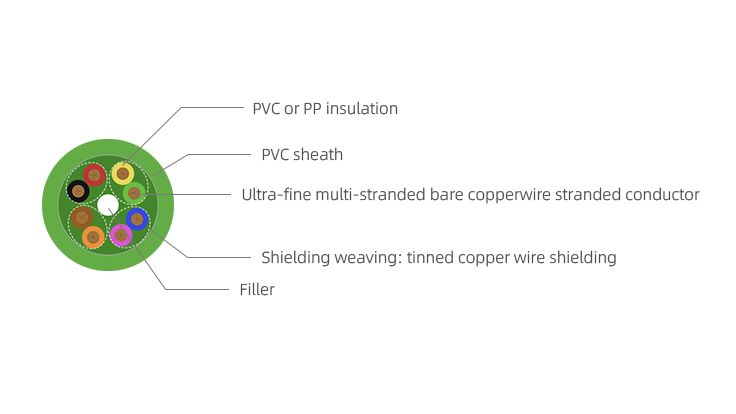

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor (six categories).
Insulation: HDPE.
Core wire color: color differentiation.
Twisted pair: The optimal pitch is twisted in pairs.
Twisting: Twisting at the optimal short pitch.
Shielding: Tinned copper wire woven shielding, with optical coverage of about 85%.
Outer sheath: Specially made PVC, adiusted to meet drag chain requirements. Colors can be matched according to customer requirements.
Minimum bending radius: mobile application: 7.5xd; Fixed installation:4xd.
Operating temperature range: Mobile installation: +5℃ to+70℃: Fixed installation:-15℃ to+70℃.
Rated voltage: 300V.
Test voltage: 2000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Has grease resistance. flexibility, and durability;
Flame retardancy in accordance with IEC 60332-1-2CEI 20-35，FT1，VW-1;
Designed for bending cycles up to 5-10 million times in power drag dhains.
Application Scope
The pressure resistance level is not suitable for power system applications;
Flexible cables can be used for occasional non connected mobility;
Used for measurement and control parts of machinery, intelligent equipment, electronics. and computers;
Electronic equipment, electronic control equipment, and office machinery that can be used as control and signal cables in computer systems;
Dry or humid indoor environment;
Not suitable for outdoor use;
Twisted pair cables are used in circuits that require decoupling;
Hioh density weaving has strong resistance to electrical interferende.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| DPS-700Y-2-2-0.14 | 2*2*0.14 | 5.9 | 42 |
| DPS-700Y-3-2-0.14 | 3*2*0.14 | 6.2 | 53 |
| DPS-700Y-4-2-0.14 | 4*2*0.14 | 6.7 | 59 |
| DPS-700Y-5-2-0.14 | 5*2*0.14 | 7.3 | 75 |
| DPS-700Y-6-2-0.14 | 6*2*0.14 | 7.5 | 88 |
| DPS-700Y-8-2-0.14 | 8*2*0.14 | 8.8 | 109 |
| DPS-700Y-10-2-0.14 | 10*2*0.14 | 10.1 | 120 |
| DPS-700Y-2-2-0.25 | 2*2*0.25 | 6.5 | 60 |
| DPS-700Y-3-2-0.25 | 3*2*0.25 | 6.8 | 72 |
| DPS-700Y-4-2-0.25 | 4*2*0.25 | 7.4 | 85 |
| DPS-700Y-6-2-0.25 | 6*2*0.25 | 8.9 | 131 |
| DPS-700Y-8-2-0.25 | 8*2*0.25 | 10.4 | 155 |
| DPS-700Y-10-2-0.25 | 10*2*0.25 | 12 | 186 |
| DPS-700Y-14-2-0.25 | 14*2*0.25 | 12.2 | 219 |
| DPS-700Y-2-2-0.34 | 2*2*0.34 | 7.1 | 81 |
| DPS-700Y-3-2-0.34 | 3*2*0.34 | 7.5 | 101 |
| DPS-700Y-4-2-0.34 | 4*2*0.34 | 8.4 | 119 |
| DPS-700Y-6-2-0.34 | 6*2*0.34 | 10.1 | 165 |
| DPS-700Y-8-2-0.34 | 8*2*0.34 | 11.8 | 221 |
| DPS-700Y-10-2-0.34 | 10*2*0.34 | 13.8 | 274 |
| DPS-700Y-2-2-0.5 | 2*2*0.5 | 8.3 | 99 |
| DPS-700Y-3-2-0.5 | 3*2*0.5 | 8.8 | 130 |
| DPS-700Y-4-2-0.5 | 4*2*0.5 | 9.8 | 148 |
| DPS-700Y-5-2-0.5 | 5*2*0.5 | 10.7 | 168 |
| DPS-700Y-6-2-0.5 | 6*2*0.5 | 11.8 | 194 |
| DPS-700Y-8-2-0.5 | 8*2*0.5 | 14 | 284 |
| DPS-700Y-10-2-0.5 | 10*2*0.5 | 15.9 | 343 |
| DPS-700Y-14-2-0.5 | 14*2*0.5 | 16.2 | 401 |
| DPS-700Y-2-2-0.75 | 2*2*0.75 | 8.9 | 112 |
| DPS-700Y-3-2-0.75 | 3*2*0.75 | 9.7 | 157 |
| DPS-700Y-4-2-0.75 | 4*2*0.75 | 10.6 | 172 |
| DPS-700Y-6-2-0.75 | 6*2*0.75 | 12.8 | 231 |
| DPS-700Y-8-2-0.75 | 8*2*0.75 | 15.2 | 342 |
| DPS-700Y-10-2-0.75 | 10*2*0.75 | 17.3 | 466 |
| DPS-700Y-14-2-0.75 | 14*2*0.75 | 18.2 | 545 |
| DPS-700Y-2-2-1.0 | 2*2*1.0 | 9.7 | 129 |
| DPS-700Y-3-2-1.0 | 3*2*1.0 | 10.4 | 169 |
| DPS-700Y-4-2-1.0 | 4*2*1.0 | 11.6 | 204 |
| DPS-700Y-5-2-1.0 | 5*2*1.0 | 12.7 | 237 |
