Oil resistant, wear resistant, bending resistant, anti-Jamming

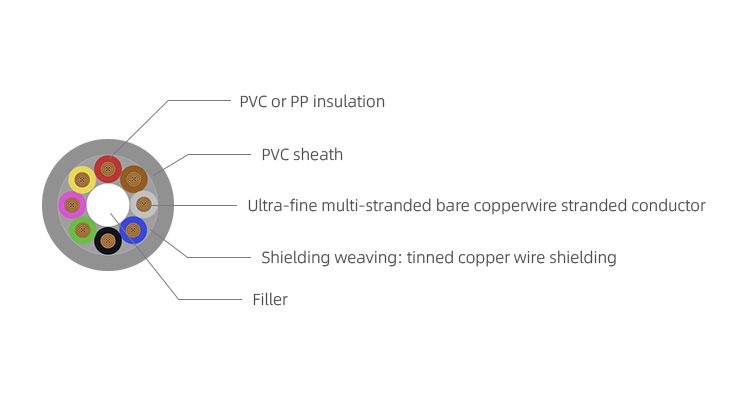

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor (six categories).
Insulation: HDPE.
Core wire color: color differentiation.
Core wire stranding: Short pitch stranding or split bundle stranding.
Shielding: Tinned copper wire weaving shielding, optical coverage of about 85%.
Outer sheath: Specially made PVC, adjusted to meet drag chain requirements. Colors can be matched according to customer requirements.
Minimum bending radius: mobile application: 7.5xd; Fixed installation: 4xd.
Operating temperature range: Mobile installation: -5℃ to+70 ℃.
Fixed installation: -20℃to+80℃.
Rated voltage: 300V.
Test voltage: 2000v.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Has grease resistance, flexibility, and durability;
Flame retardancy in accordance with IEC 60332-1-2CEI 20-35FT1， VW-1;
Designed for bending cvcles up to 5-1o mi ion times in power drag chains.
Application Scope
The pressure resistance level is not suitable for power system applications;
Flexible cables can be used for occasional non connected mobility;
Measurement and control parts for machinery, intelligent equinment, electronics, and computers.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| DP-700Y-2-0.14 | 2*0.14 | 3.9 | 20 |
| DP-700Y-3-0.14 | 3*0.14 | 4.1 | 28 |
| DP-700Y-4-0.14 | 4*0.14 | 4.3 | 33 |
| DP-700Y-5-0.14 | 5*0.14 | 4.6 | 38 |
| DP-700Y-7-0.14 | 7*0.14 | 4.9 | 49 |
| DP-700Y-8-0.14 | 8*0.14 | 5.8 | 56 |
| DP-700Y-12-0.14 | 12*0.14 | 6.3 | 78 |
| DP-700Y-16-0.14 | 16*0.14 | 7.0 | 90 |
| DP-700Y-20-0.14 | 20*0.14 | 7.7 | 116 |
| DP-700Y-25-0.14 | 25*0.14 | 8.4 | 149 |
| DP-700Y-40-0.14 | 40*0.14 | 10.4 | 210 |
| DP-700Y-50-0.14 | 50*0.14 | 11.1 | 253 |
| DP-700Y-2-0.25 | 2*0.25 | 4.5 | 32 |
| DP-700Y-3-0.25 | 3*0.25 | 4.7 | 37 |
| DP-700Y-4-0.25 | 4*0.25 | 5.0 | 41.3 |
| DP-700Y-5-0.25 | 5*0.25 | 5.6 | 51.2 |
| DP-700Y-7-0.25 | 7*0.25 | 6.0 | 65 |
| DP-700Y-8-0.25 | 8*0.25 | 7.1 | 73 |
| DP-700Y-12-0.25 | 12*0.25 | 7.7 | 98 |
| DP-700Y-16-0.25 | 16*0.25 | 8.4 | 124 |
| DP-700Y-20-0.25 | 20*0.25 | 9.3 | 152.3 |
| DP-700Y-25-0.25 | 25*0.25 | 10.7 | 172 |
| DP-700Y-40-0.25 | 40*0.25 | 12.7 | 248 |
| DP-700Y-50-0.25 | 50*0.25 | 13.8 | 318 |
| DP-700Y-2-0.34 | 2*0.34 | 4.9 | 37 |
| DP-700Y-3-0.34 | 3*0.34 | 5.1 | 49 |
| DP-700Y-4-0.34 | 4*0.34 | 5.7 | 59 |
| DP-700Y-5-0.34 | 5*0.34 | 6.2 | 66 |
| DP-700Y-7-0.34 | 7*0.34 | 6.8 | 83 |
| DP-700Y-8-0.34 | 8*0.34 | 7.8 | 94 |
| DP-700Y-12-0.34 | 12*0.34 | 8.5 | 142 |
| DP-700Y-16-0.34 | 16*0.34 | 9.4 | 160 |
| DP-700Y-20-0.34 | 20*0.34 | 10.7 | 192 |
| DP-700Y-25-0.34 | 25*0.34 | 11.9 | 259 |
| DP-700Y-40-0.34 | 40*0.34 | 14.8 | 365 |
| DP-700Y-50-0.34 | 50*0.34 | 15.9 | 431 |
Our products have a wide range of applications and guaranteed quality
