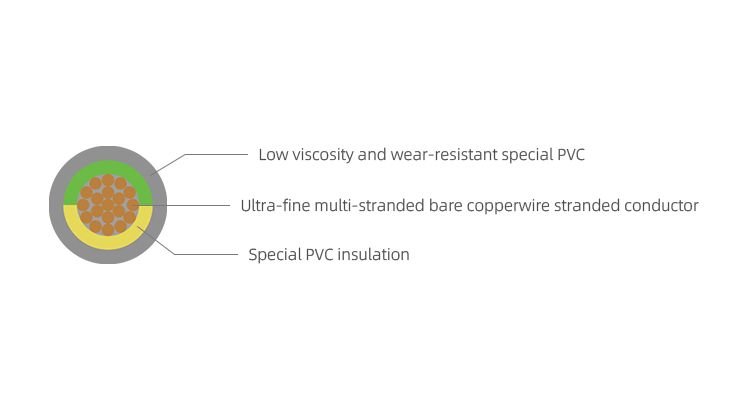

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).
Insulation: Special PVC
Core wire colors: gray, black, yellow/green, or other colors can becustomized as needed.
Outer sheath: Low viscosity and wear-resistant PVC, adiusted to meetdrag chain requirements; Colors can be matched according to customer requirements.
Minimum bending radius: mobile application: 7.5xd;
Fixed installation: 4xd.
Operating temperature range: Mobile installation: -5℃ to+70℃; Fixed installation: -20℃to+80℃.
Test voltage: 4000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Excellent wear resistance, bending resistance, and oil resistance.
Flame retardancy meetsIEC60332-1-2CE120-35.FT1VW-1.
Designed for up to 5 million bending cycles in power drag chains.
Application Scope
Suitable for mobile use in automatic machine drag chains.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| FD-70Y-1-2.5 | 1*2.5 | 5.2 | 48 |
| FD-70Y-1-4.0 | 1*4.0 | 6.0 | 70 |
| FD-70Y-1-6.0 | 1*6.0 | 7.2 | 101 |
| FD-70Y-1-10.0 | 1*10.0 | 9.0 | 158 |
| FD-70Y-1-16.0 | 1*16.0 | 9.9 | 217 |
| FD-70Y-1-25.0 | 1*25.0 | 11.3 | 307 |
| FD-70Y-1-35.0 | 1*35.0 | 13.1 | 427 |
| FD-70Y-1-50.0 | 1*50.0 | 15.9 | 611 |
