Oil resistant, wear resistant, bending resistant, anti-Jamming, with shield

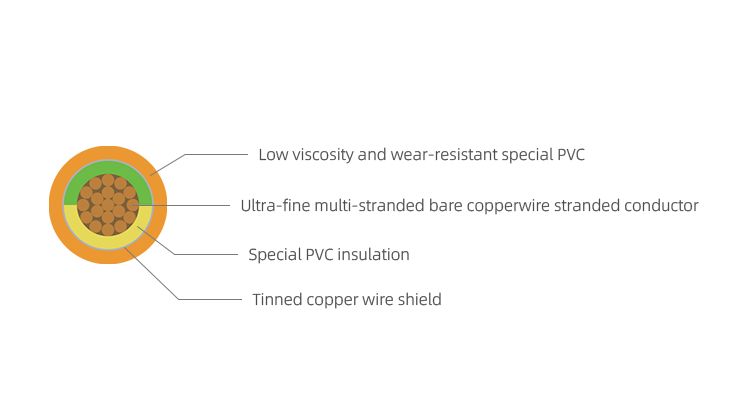

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).
Insulation: Special PVC.
Core wire color: gray; Other colors can be customized as needed.
Shielding layer: Tinned copper wire woven shielding, optical coverage of about 85%.
Outer sheath: Specially made PVC, adjusted to meet drag chain requirements; Black, red, yellow, green, gray, blue orange, yellow/green can be customized in other colors as needed.
Operating temperature range: Mobile installation: -5℃ to+70℃: Fixed installation: -20℃to+80℃ .
Rated voltage: 450/750V.
Test voltage: 4000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Excellent wear resistance, bending resistance, and oil resistance.
Flame retardancy meets IEC60332-1-2CEI20-35FT1VW-1.
Designed for up to 5 million bending cycles in power drag chains.
Application Scope
Mechanical manufacturing; machine tool eauipment. automated production lines; Can come into contact with oil stains.
Mobile applications under moderate mechanical stress.
Equipped with high-density woven laver, more suitable for anti electromagretic interference situations19.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| FD-70Y-1-2.5 | 1*2.5 | 5.7 | 65 |
| FD-70Y-1-4.0 | 1*4.0 | 7.2 | 84 |
| FD-70Y-1-6.0 | 1*6.0 | 8.6 | 140 |
| FD-70Y-1-10.0 | 1*10.0 | 9.7 | 227 |
| FD-70Y-1-16.0 | 1*16.0 | 11.2 | 297 |
| FD-70Y-1-25.0 | 1*25.0 | 12.5 | 410 |
| FD-70Y-1-35.0 | 1*35.0 | 15.1 | 607 |
| FD-70Y-1-50.0 | 1*50.0 | 17.1 | 808 |
| FD-70Y-1-70.0 | 1*70.0 | 19.4 | 1081 |
