Conductor: super-fine strands of silver-plated copper wire or tinned copper wire stranded conductor

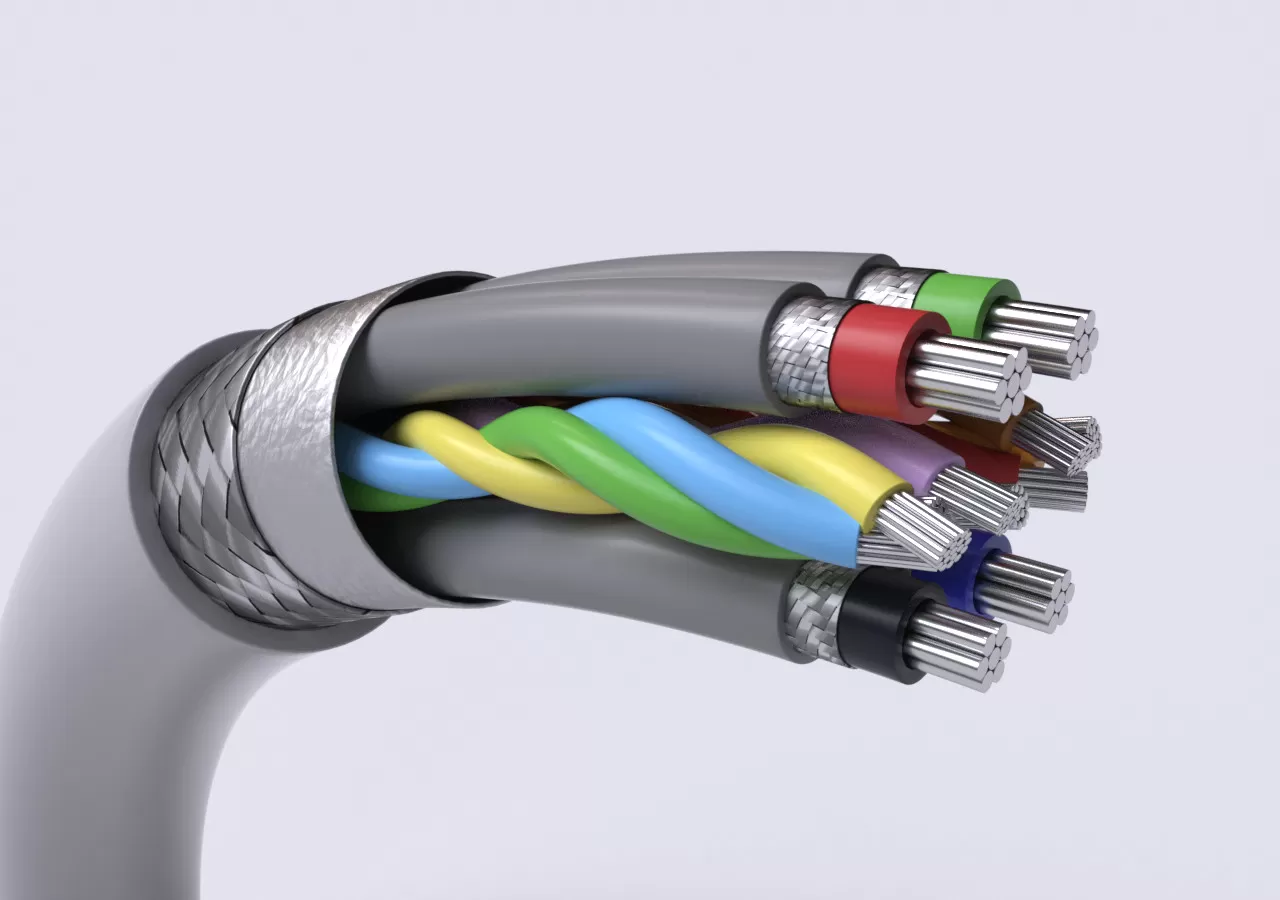

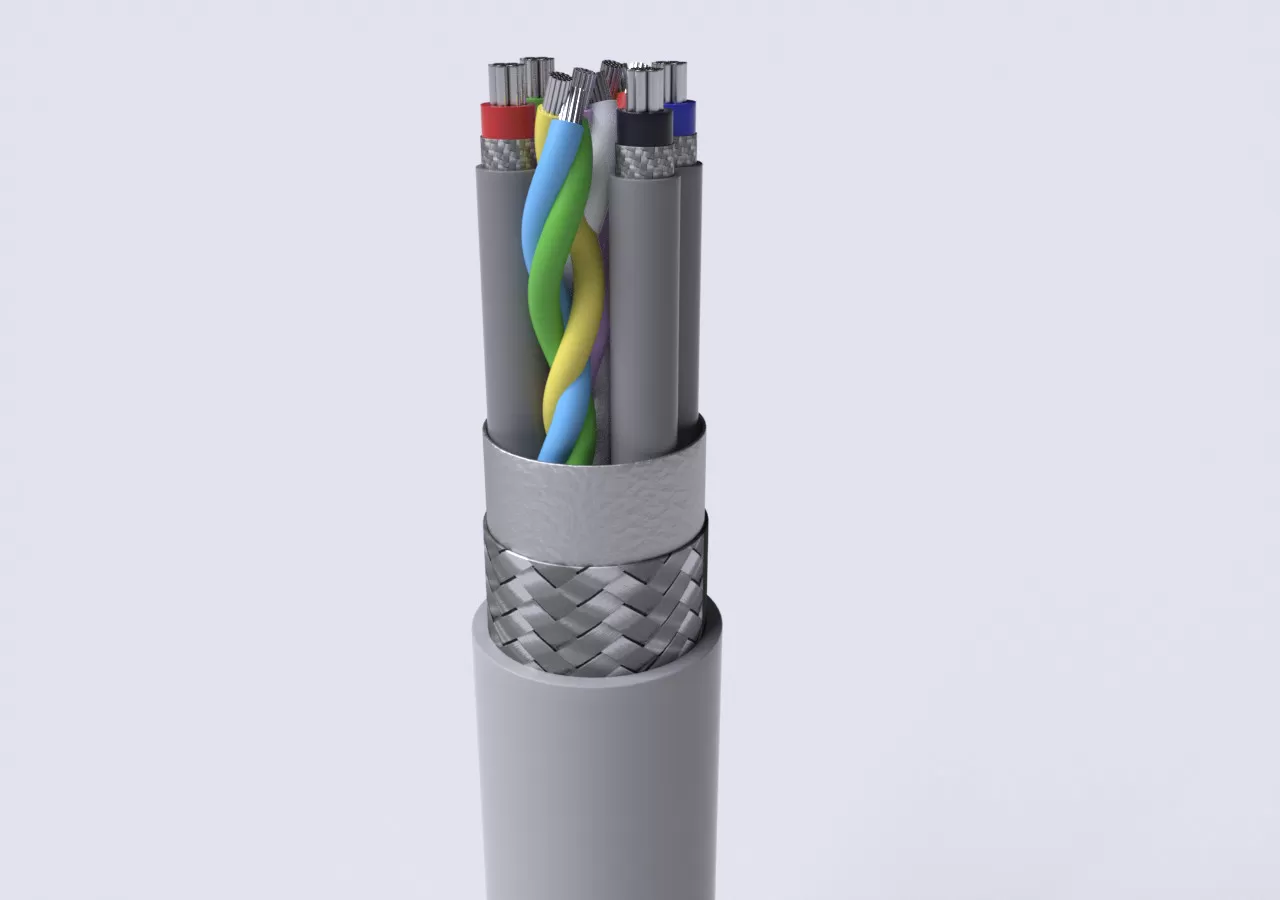

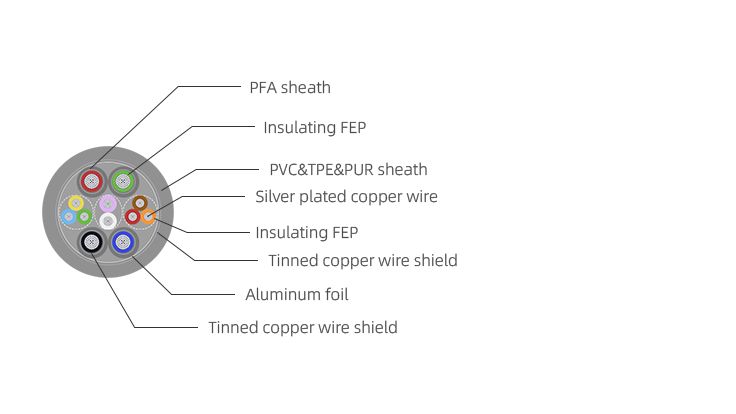

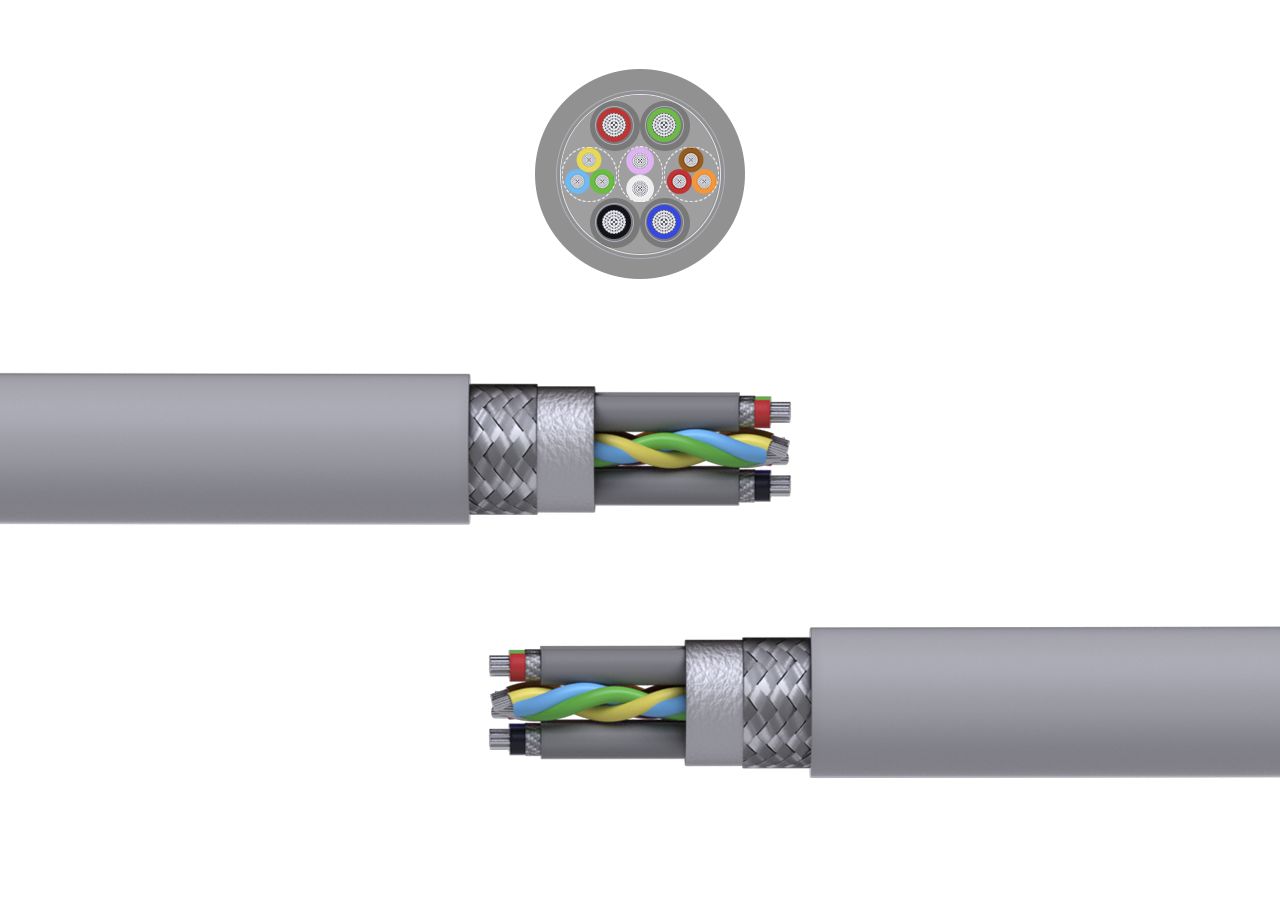

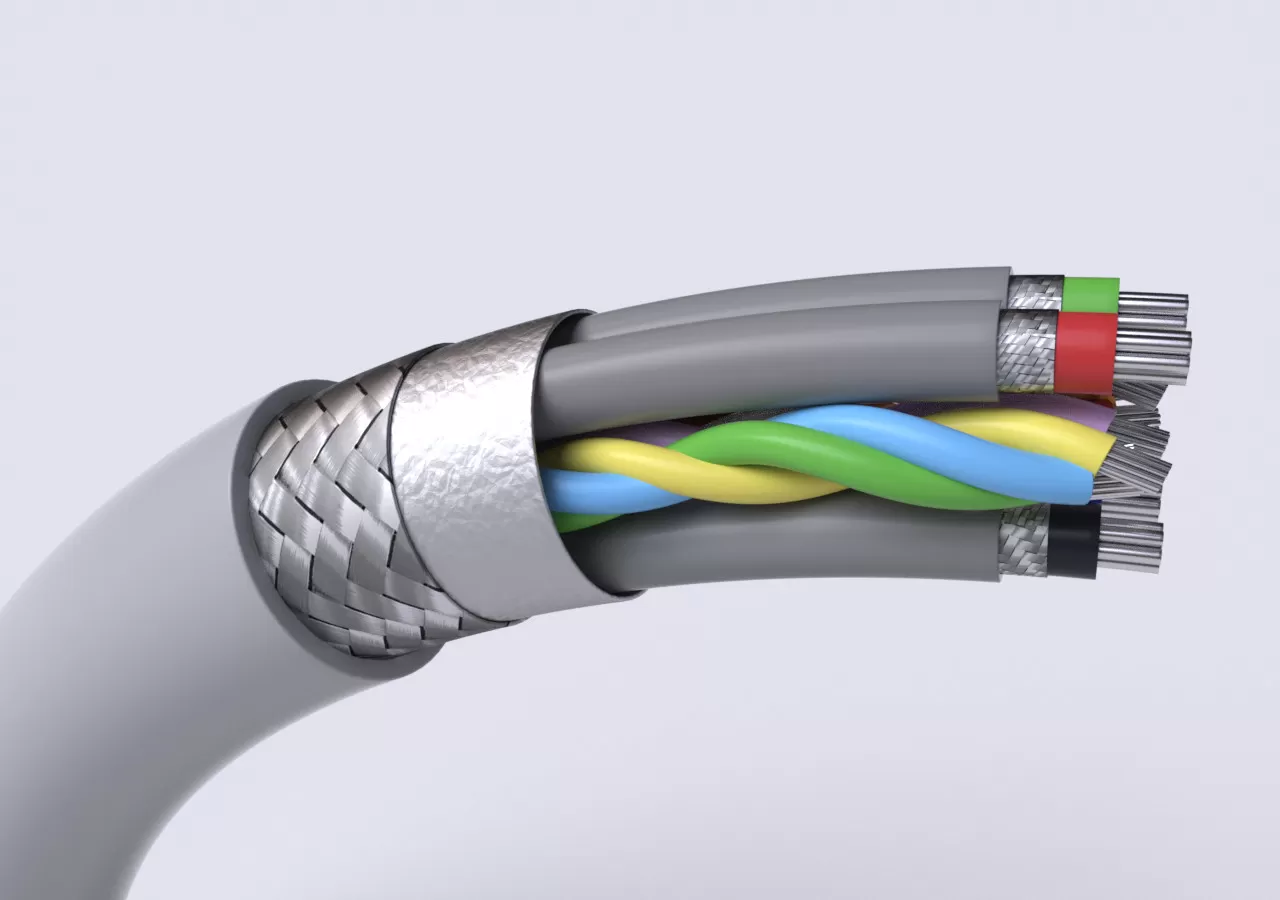

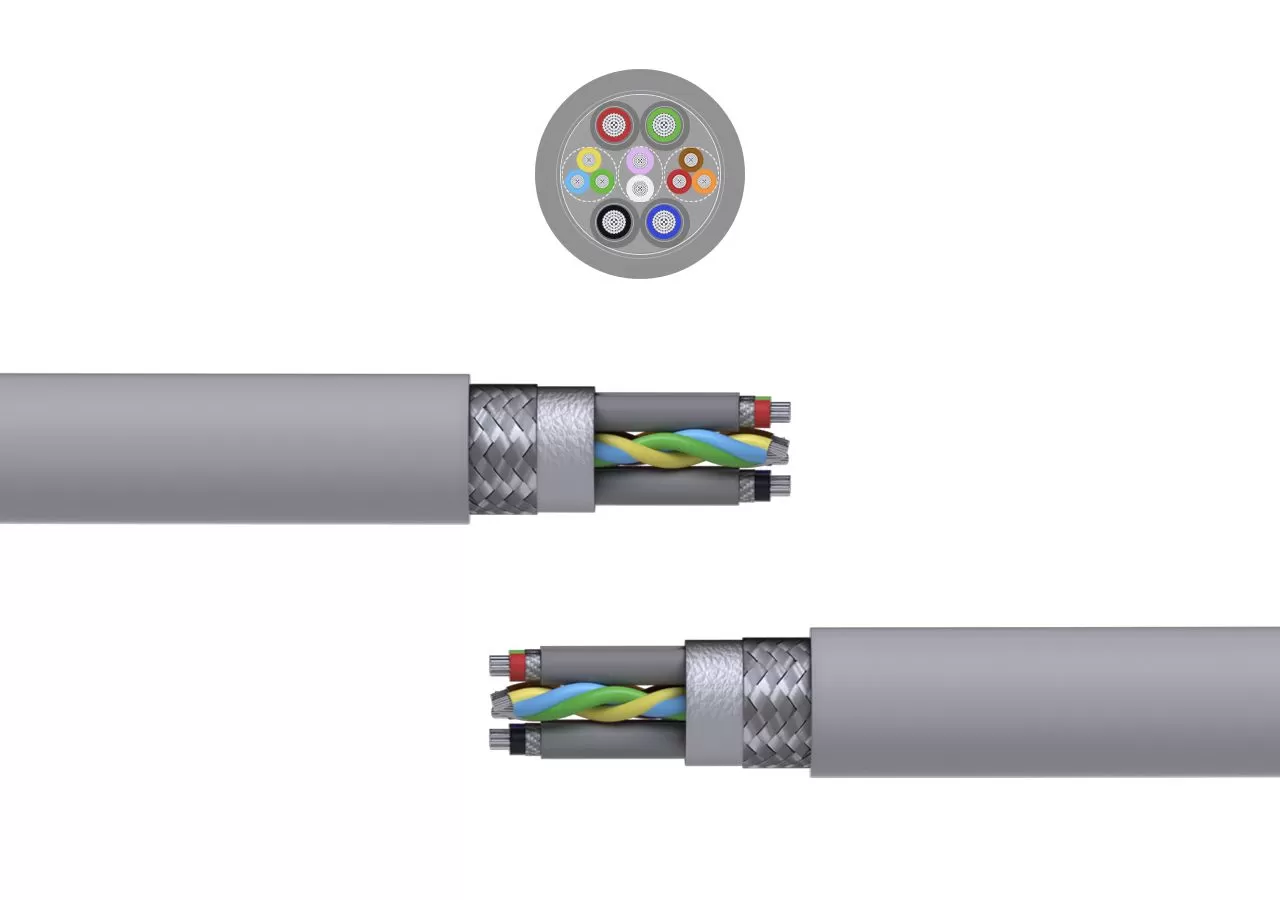

Sketch Map
Technical Parameters
(1) Conductor: super-fine strands of silver-plated copper wire or tinned copper wire stranded conductor
(2) Insulation: FEP insulation mixture.
(3) Core wire color: color differentiation
(4) Twisted pair: The optimal pitch is twisted in pairs.
(5) Twisting: Twisting at the optimal short pitch.
(6) Shielding: silvered or tinned copper wire braid shielding, optical coverage of about 90%.
(7) Outer sheath :TPU polyether, adjusted to meet the requirements of the towline; Colors can be customized according to customer requirements.
(8) Minimum bending radius: mobile application: 7.5xd; Fixed installation: 4xd.
(9) Operating temperature range: mobile installation: -20C to +80C; Fixed installation: -40C to +80C.
(10) Rated voltage: 30V.
(11) Test voltage: 500V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
(1) The advantage of attenuation performance;
(2) Transmission length of 3.5-6 meters;
(3) Excellent electrical performance, and stable electrical performance when bending;
(4) Excellent high-frequency attenuation;
(5) Suitable for small space wiring.
Application Scope
Endoscopy equipment accessories for minimally invasive surgery.
Our products have a wide range of applications and guaranteed quality
