What is the Difference Between Single and Double Shielded Cable?

Dec. 13, 2024

In the world of electrical wiring, shielding plays a critical role in ensuring signal integrity and reducing electromagnetic interference (EMI). When choosing between single-core shielded cables and double-shielded cables, understanding their differences can help you make the right decision for your application.

the Difference Between Single and Double Shielded Cable

Single Shielded Cable: Simplicity and Efficiency

A single-core shielded cable features one shielding layer, typically made of a braided metal mesh, aluminum foil, or a combination of both. This layer acts as a barrier against EMI, protecting the core conductor and maintaining signal quality.

Advantages:

● Cost-Effective: Single-shielded cables are less expensive, making them ideal for low-EMI environments.

● Flexible: With fewer layers, they are easier to bend and route in tight spaces.

● Lightweight: Suitable for applications where weight is a concern, such as aerospace or portable devices.

Applications:

Single-shielded cables are commonly used in audio systems, low-frequency data transmission, and environments with minimal EMI.

Double Shielded Cable: Superior Protection

Double-shielded cables incorporate two layers of shielding, usually a combination of foil and braid, providing enhanced EMI protection. The additional shield offers greater defense against high-frequency interference and ground loop issues.

Advantages:

● Enhanced EMI Resistance: Perfect for high-noise environments like industrial automation or radio signal transmission.

● Improved Signal Integrity: Ideal for sensitive data applications where precision is key.

● Durability: The extra layer increases physical robustness, making it suitable for harsh conditions.

Applications:

Double-shielded cables are often found in military-grade systems, medical equipment, and high-speed communication networks.

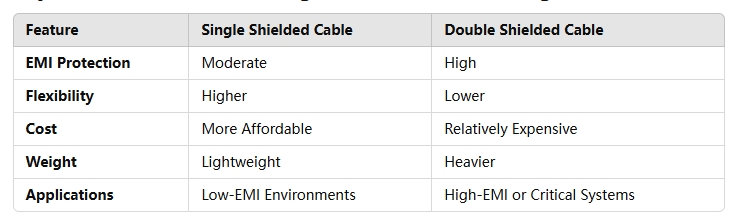

Key Differences Between Single and Double Shielding

How to Choose the Right Shielded Cable

When deciding between single and double-shielded cables, consider the following:

● EMI Level: Assess the interference levels in your environment.

● Budget: Balance cost with performance requirements.

● Application Needs: Determine the cable's intended use, such as flexibility or signal precision.

By understanding the distinctions between single and double-shielded cables, you can select the optimal solution to ensure performance and reliability in your electrical systems.
