When selecting Ethernet cables for your network, choosing between Shielded Cat5 Cable (STP) and Unshielded Cat5 Cable (UTP) is critical. Both cables belong to the same category but differ significantly in performance, price, and suitability for various environments. This guide breaks down their differences to help you make an informed decision.
Performance: Shielding vs. No Shielding
The most notable distinction lies in their construction:

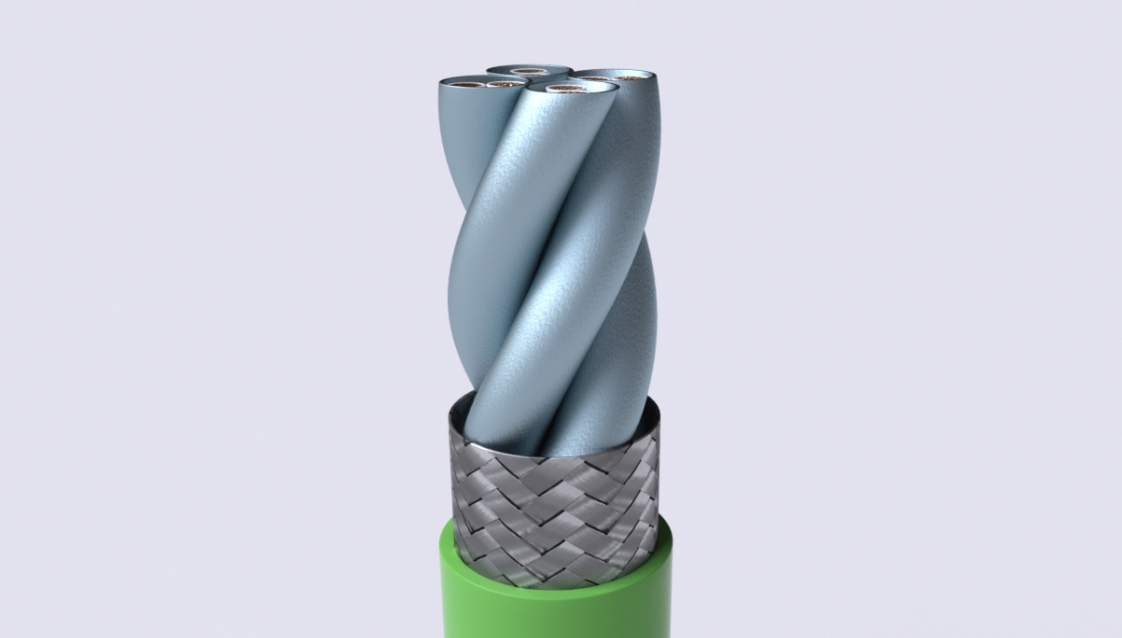

Shielded Cat5 Cable (STP): Features an additional metallic shielding layer around the twisted wire pairs. This layer prevents electromagnetic interference (EMI) and crosstalk, ensuring high-quality and stable signal transmission, even in electrically noisy environments.
Unshielded Cat5 Cable (UTP): Lacks the shielding layer, relying solely on the twisted pair design to minimize interference. While adequate for low-EMI environments, UTP cables are more susceptible to signal degradation in challenging conditions.
Key Insight: Shielded Cat5 is ideal for environments with heavy machinery, power lines, or other sources of EMI, while UTP works well in home or small office setups with minimal interference.
Cost: Affordability vs. Performance Investment
UTP cables are generally more affordable due to their simpler construction and ease of installation. STP cables cost more because of the shielding material and additional grounding requirements during installation.
Key Insight: For budget-sensitive projects in low-EMI environments, UTP cables are the practical choice. However, in industrial or mission-critical networks, the higher cost of Shielded Cat5 pays off with superior performance and reliability.
Installation and Maintenance
● Shielded Cat5: Requires proper grounding to function effectively. Improper installation can negate the benefits of shielding, leading to potential performance issues.
● Unshielded Cat5: Easier to install as it does not require grounding, making it more user-friendly for non-technical users.
● Key Insight: STP cables demand professional installation but reward users with enhanced durability and signal stability. UTP cables are simpler and more versatile for standard applications.
Suitability for Different Environments
● Shielded Cat5: Best suited for industrial facilities, enterprise networks, data centers, and medical environments where EMI is prevalent.
● Unshielded Cat5: Suitable for residential applications, small offices, and other environments with minimal electronic interference.
● Key Insight: Evaluate your environment carefully. For environments with complex electrical setups or high-density networking equipment, Shielded Cat5 ensures reliable performance.
Which One Should You Choose?
Choose Shielded Cat5 if:
Your network is in an EMI-heavy environment (industrial or enterprise).
Signal stability and integrity are top priorities.
You’re prepared to invest in professional installation.
Choose Unshielded Cat5 if:
You’re operating in a low-EMI environment (residential or small business).
Budget constraints are a key factor.
You prefer a straightforward installation process.
Conclusion
The choice between Shielded and Unshielded Cat5 cables boils down to your specific needs. While Shielded Cat5 Cable offers superior performance in high-EMI environments, Unshielded Cat5 provides a cost-effective and simpler solution for everyday applications. By understanding their strengths and limitations, you can ensure your network operates efficiently and reliably in any setting.
