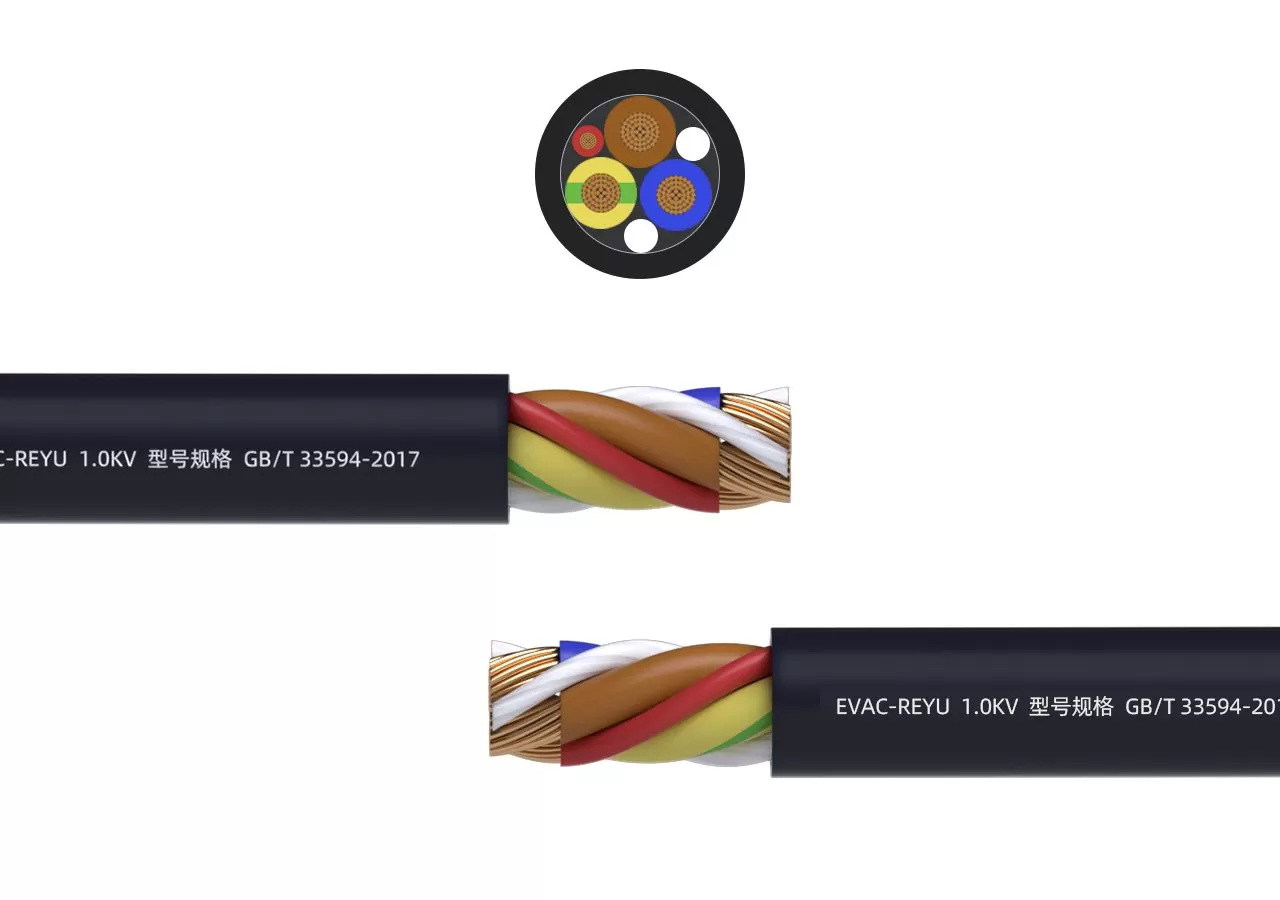

Sketch Map

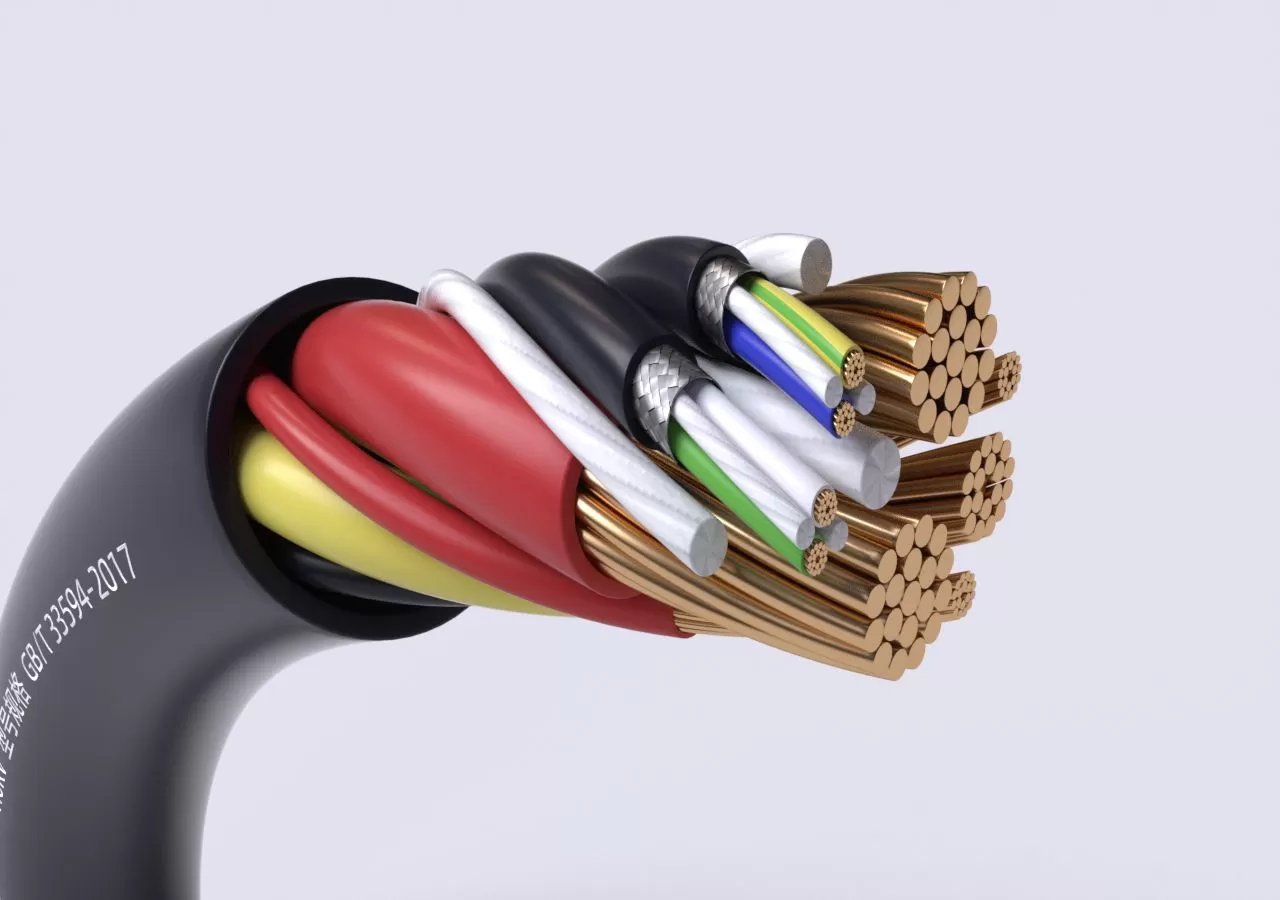

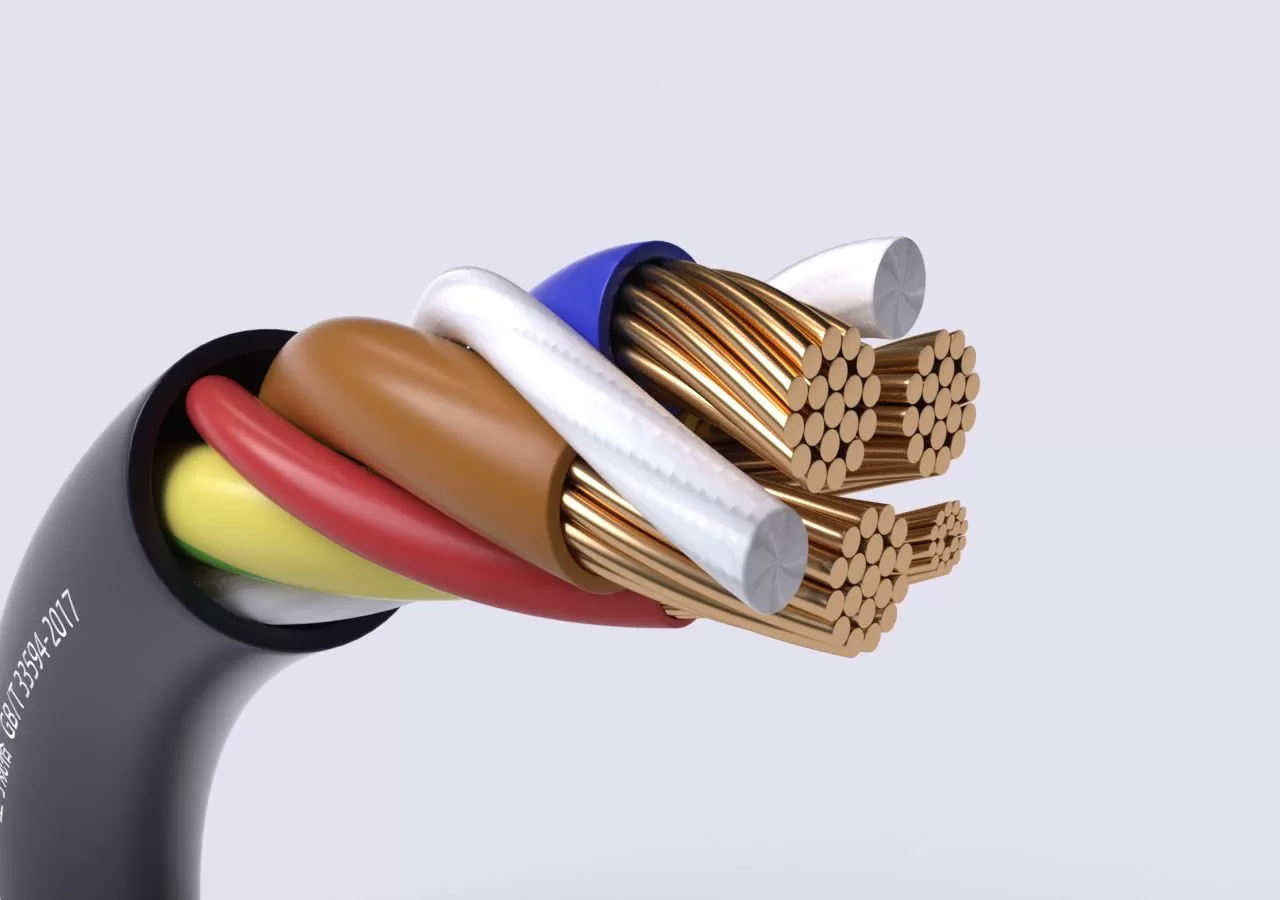

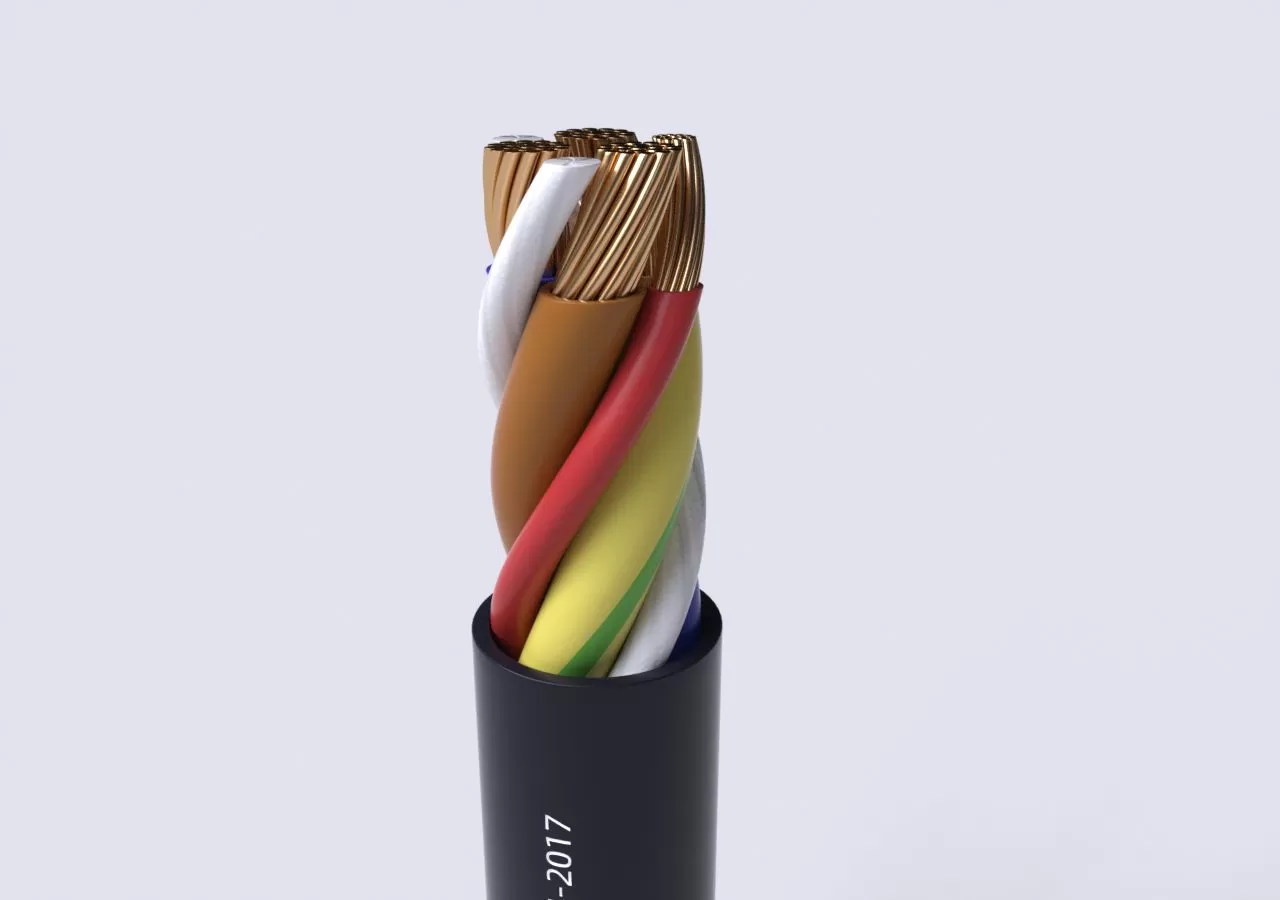

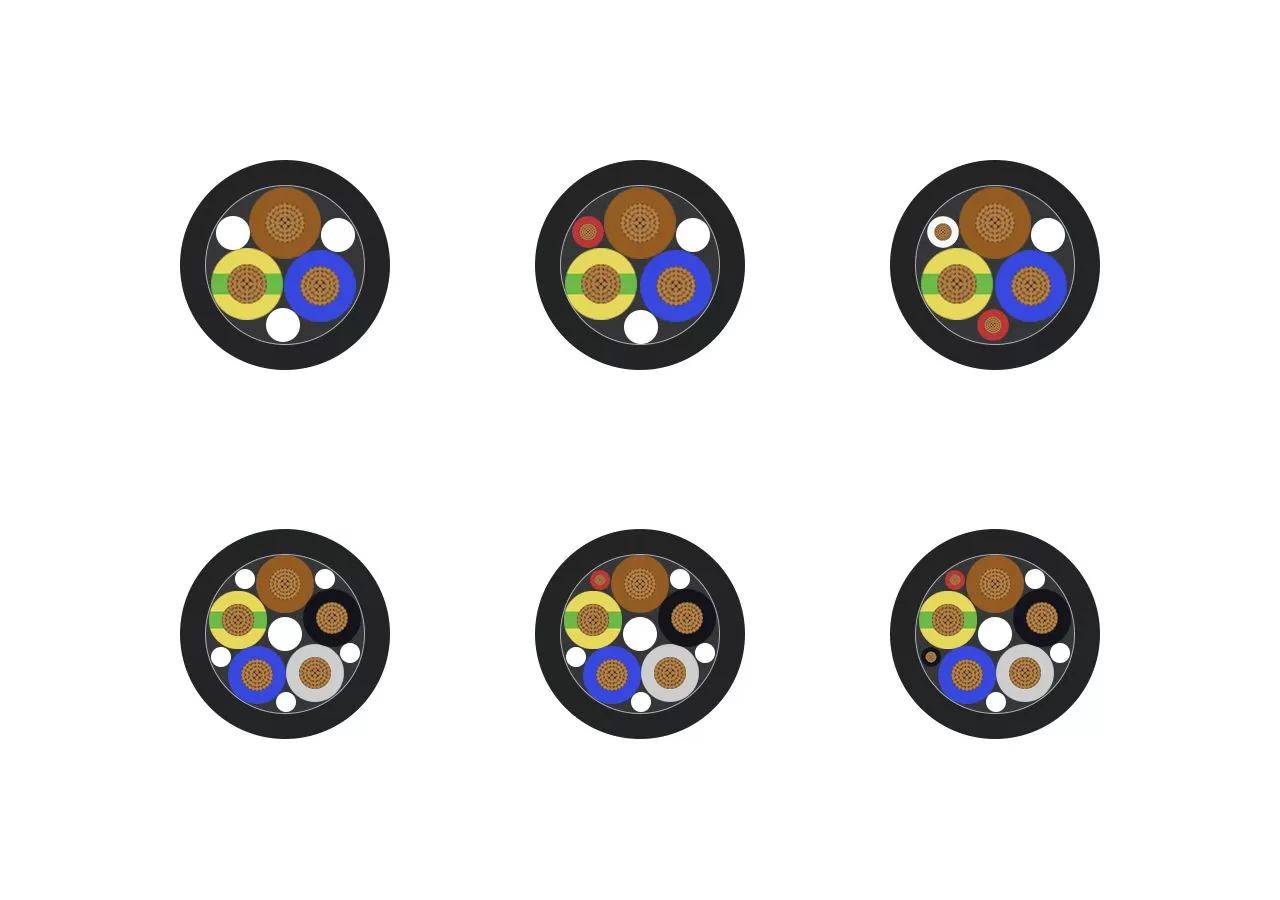

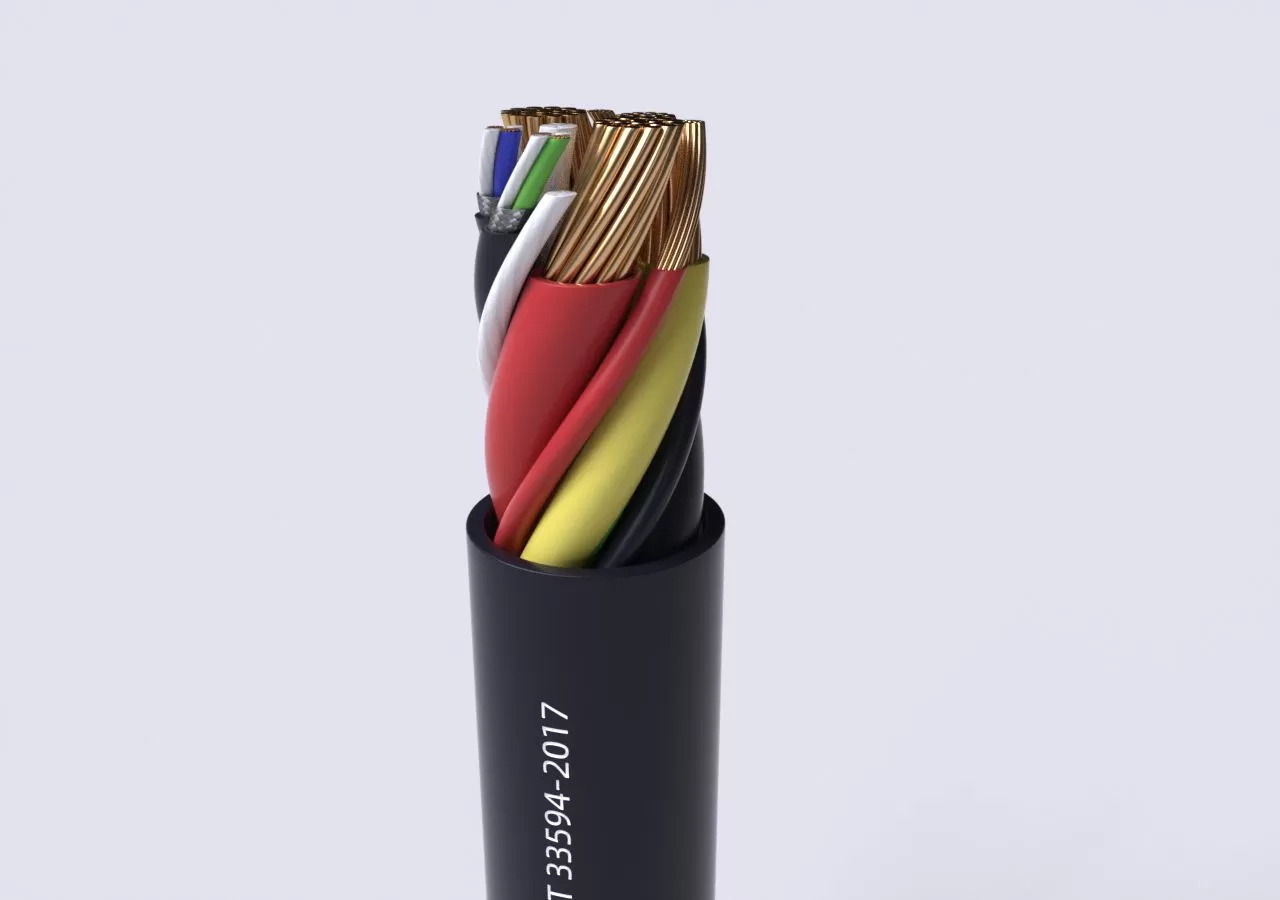

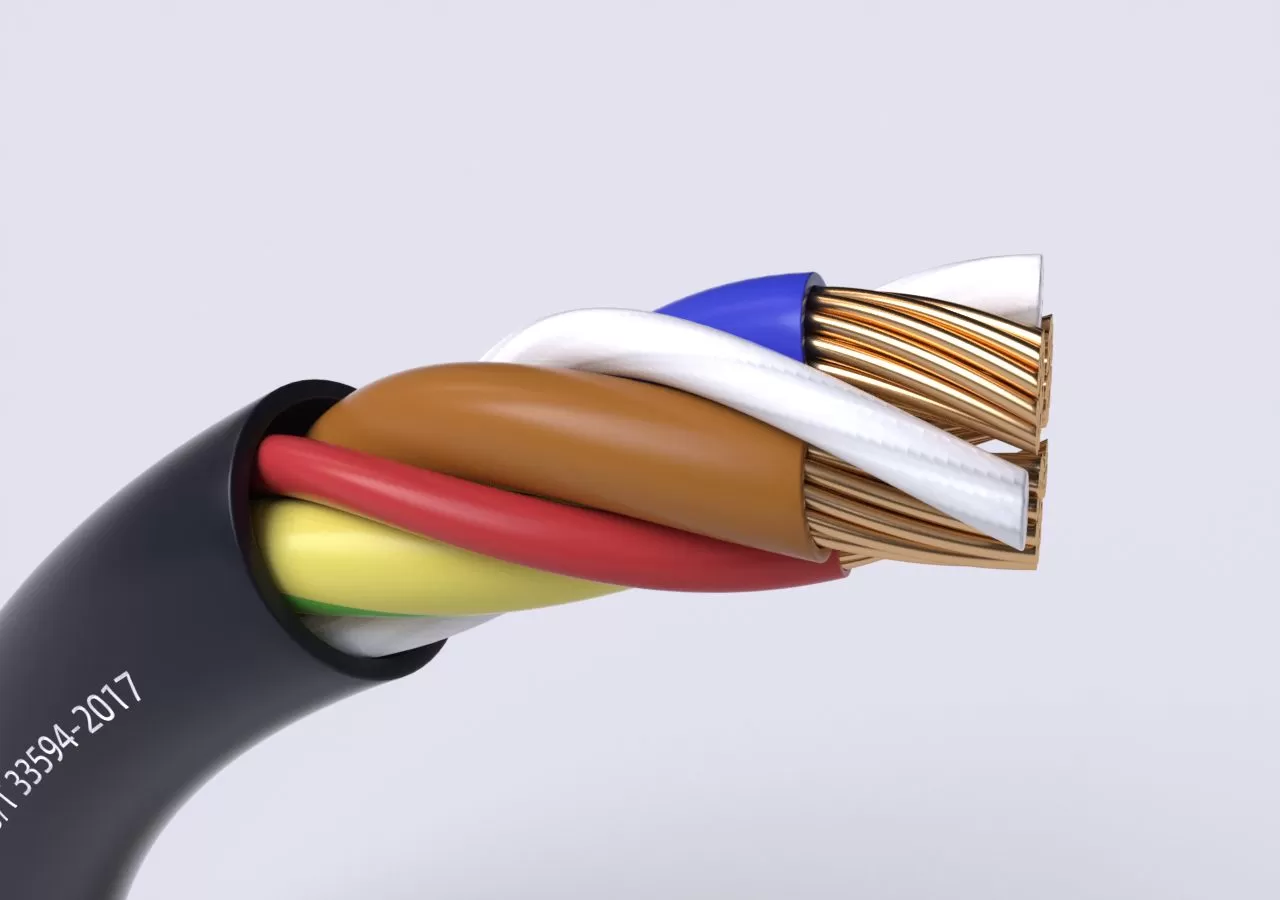

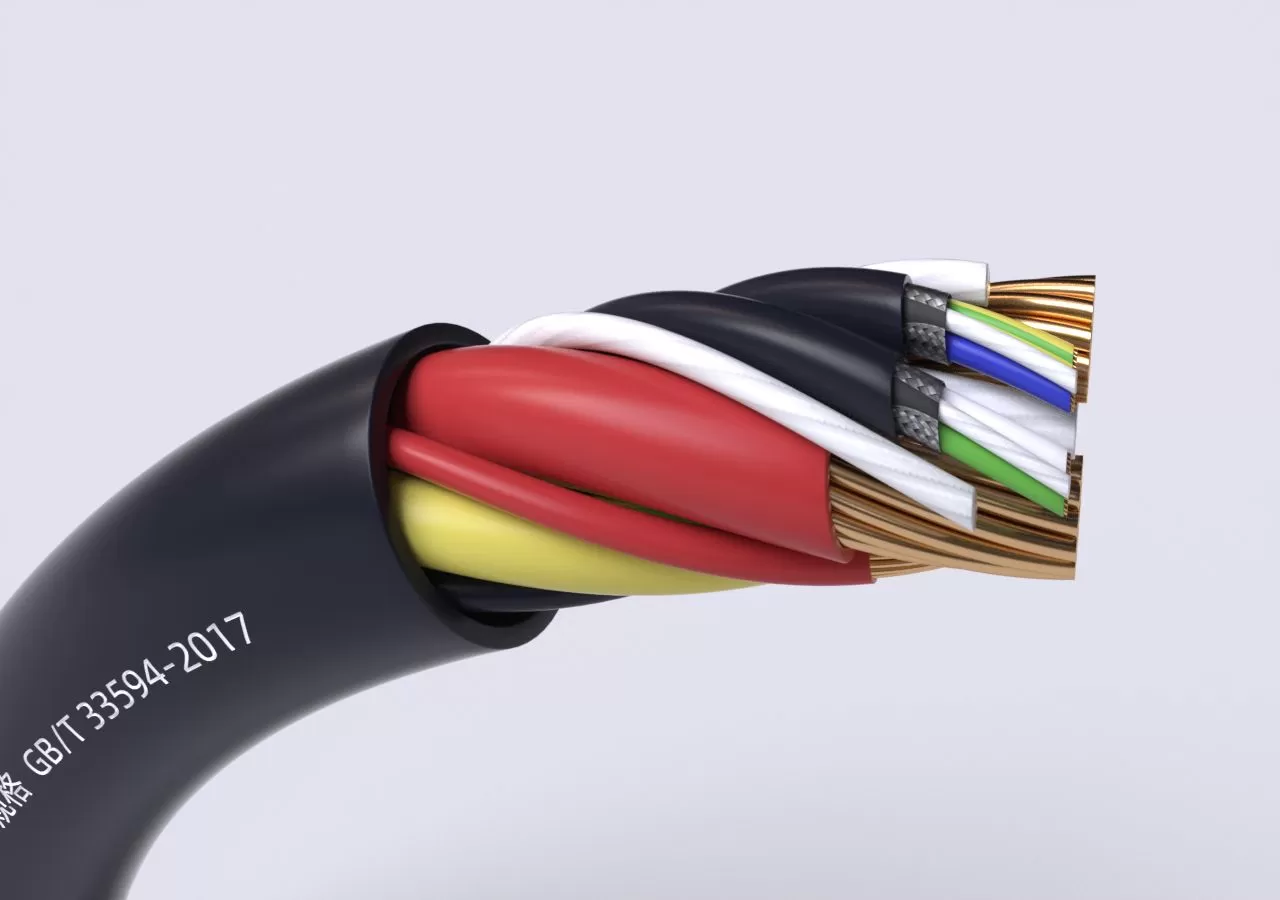

Construction

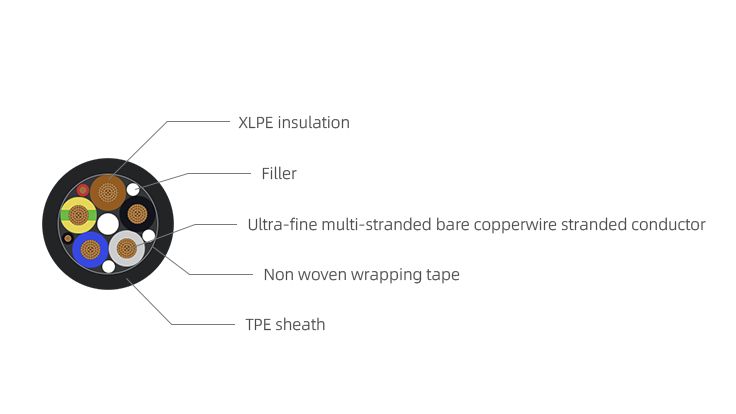

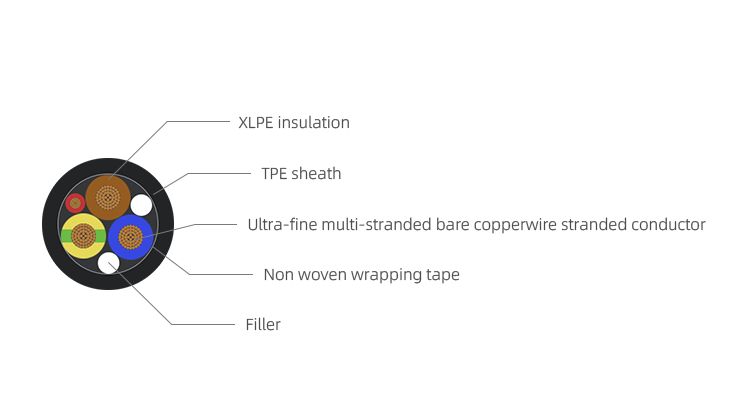

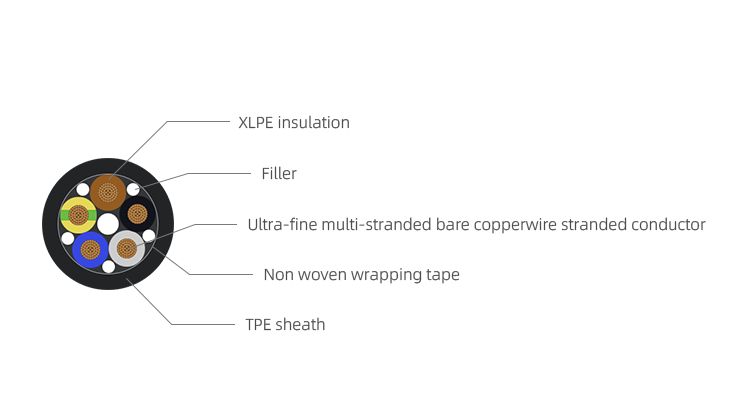

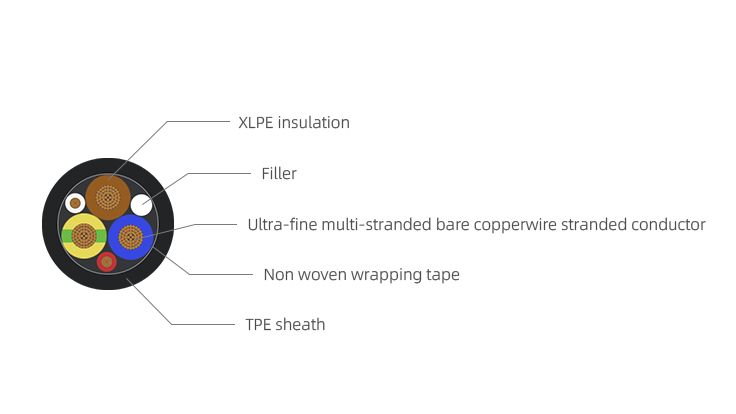

1. Conductor
Material: bare copper
2. Insulation
XLPE Material: XLPE
Color: brown, blue, yellow/green.
3. Filler
Material: cotton
4. Wrapping tape
Material: non-woven
5. Sheath
TPE Material: TPE
Color: black
From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Features
Rated temperature: -40℃～90℃
Rated voltage: AC 300/500V、 450/750V；DC 1000V
Combustion test: Testing method according to EN 60332-1-2
Minimum bend radius: ≥6*OD
Withstand voltage: 2.5 kV AC for main core , 2.0 kv AC for CC/CP
Low-temperature impact: -40℃, No cracks
Thermal shock: 150℃/1h No cracks
Oil resistant: IRM902, 100℃*168h Tensile Strength Variation ＜±40%，Elongation Variation＜±30%
Extrusion resistance: Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN
Acid and alkali resistant: 168h, Tensile Strength Variation ≤30%; Elongation≥100%
Environmental requirement: Compliant with RoHS and REACH
Product Standards
| Specification | Stranding outer diameter of conductor | conductor resistance | Reference load current | Finished outside diameter without shielding |
| 3×1.5mm²+(0～6)×(0.5～1.0)mm² | 1.6 | 13.3 | 10A | 8.6~9.6 |
| 3×2.5mm²+(0～6)×(0.5～1.0)mm² | 2.1 | 7.98 | 16A | 9.8~10.8 |
| 3×1.5mm²+(0～6)×(0.5～1.0)mm² | 1.6 | 13.3 | 10A | 8.8~9.6 |
| 3×2.5mm²+(0～6)×(0.5～1.0)mm² | 2.1 | 7.98 | 16A | 10~10.8 |
| 3×4.0mm²+(0～6)×(0.5～1.0)mm² | 2.8 | 4.95 | 20A | 11.5 |
| 3×6.0mm²+(0～6)×(0.5～1.0)mm² | 3.5 | 3.3 | 32A | 13.2 |
| 3×10.0mm²+(0～6)×(0.5～1.0)mm² | 4.5 | 1.91 | 40A | 16.3 |
| 3×16mm²+(0～6)×(0.5～1.0)mm² | 5.7 | 1.21 | 63A | 19 |
| 5×2.5mm²+(0～6)×(0.5～1.0)mm² | 2.1 | 7.98 | 16A | 13.5 |
| 5×4.0mm²+(0～6)×(0.5～1.0)mm² | 2.8 | 4.95 | 20A | 15 |
| 5×6.0mm²+(0～6)×(0.5～1.0)mm² | 3.5 | 3.3 | 32A | 16.8 |
| 5×10.0mm²+(0～6)×(0.5～1.0)mm² | 4.5 | 1.91 | 40A | 20 |
| 5×16mm²+(0～6)×(0.5～1.0)mm² | 5.7 | 1.21 | 63A | 23.5 |
| 5×25mm²+(0～6)×(0.5～1.0)mm² | 7.2 | 0.78 | 80A | 29 |
| 5×35mm²+(0～6)×(0.5～1.0)mm² | 8.4 | 0.554 | 125A | 32.8 |
Our products have a wide range of applications and guaranteed quality
