Oil resistant, bending resistant, anti-Jamming

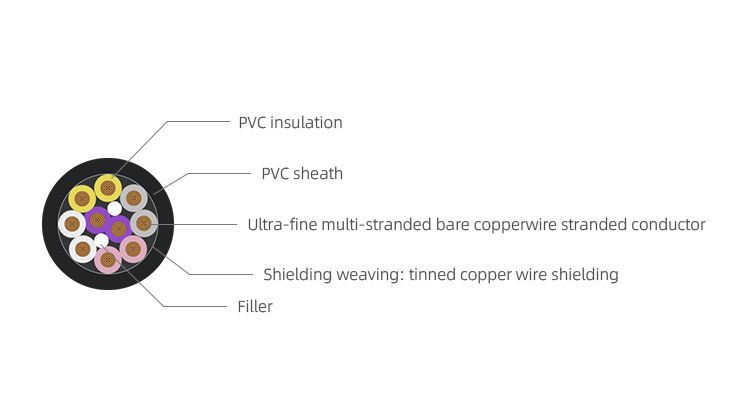

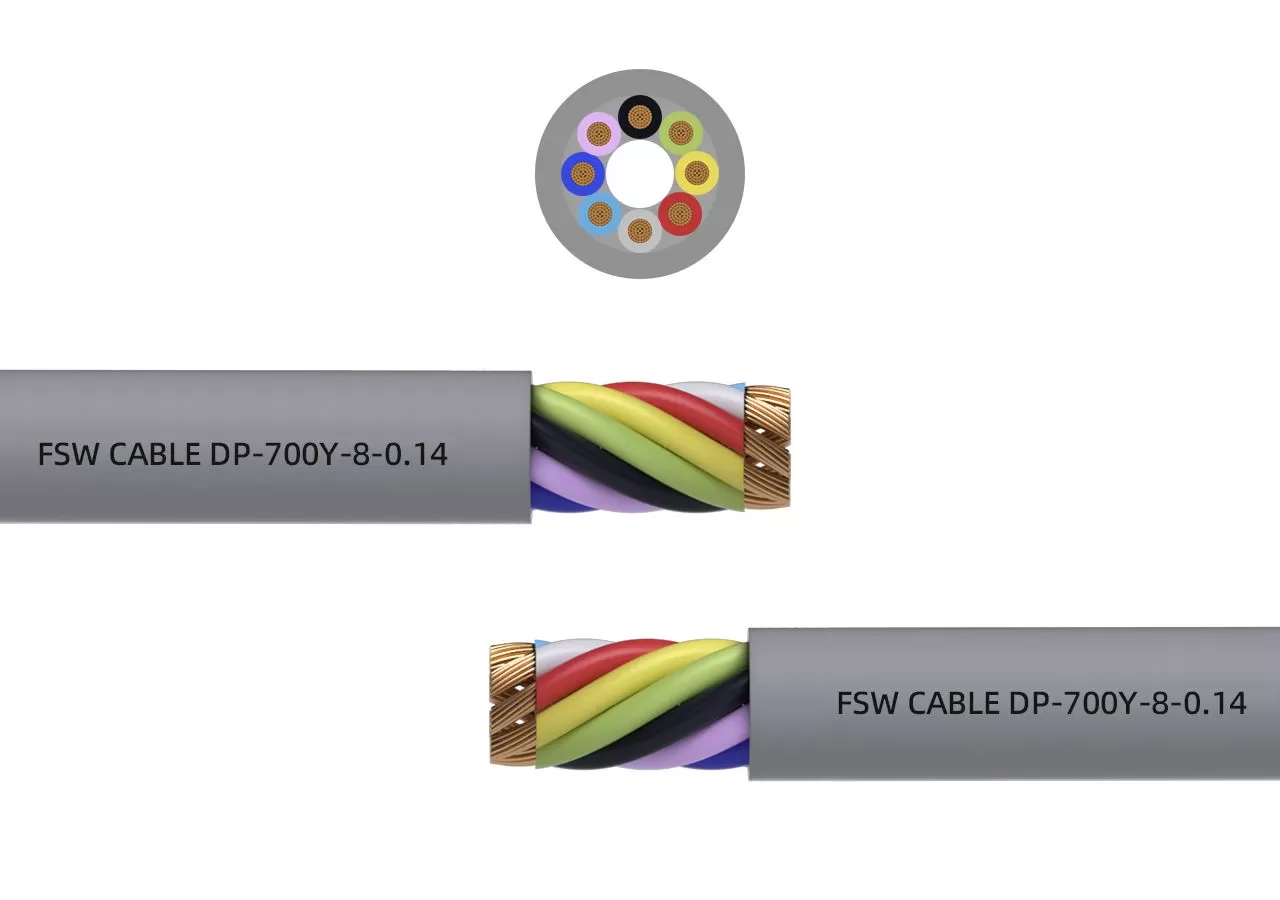

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire or tinned copper wire stranded conductor (six categories).
Insulation:Special PVC.
Core wire color: color differentiation, with the same color core wire for differentiation.
Twisting: Twisting at the optimal pitch.
Shielding: Tinned copper wire woven shielding, optical coverage of about 85%.
Outer sheath: specially made PVC; Colors can be matched according to customer requirements.
Minimum bending radius: occasional movement: 15xd; Fixed installatidn: 4xd.
Temperature range for use: occasional movement:-5℃ to+70 ℃.
Fixed installation: -20℃to+80℃.
Rated voltage: 300V.
Test voltage: 1500V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Strong, flexible and outer sheath;
Despite the large number of core wires, the outer diameter is still sma11;
Flame retardancy in accordance with IEC60332-1-2.
Application Scope
Used in computer systems.electronic control equipment, office eauipment, measurement eauipment.etc.
With a usage range of milliamperes and any occasion that requires a minimum cable outer diameter.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| PB-10-0.08 | 10x0.08 | 5.8 | 84 |
| PB-15-0.08 | 15x0.08 | 6.5 | 89 |
| PB-20-0.08 | 20x0.08 | 7 | 93 |
| PB-26-0.08 | 26x0.08 | 7.9 | 103 |
| PB-32-0.08 | 32x0.08 | 8.4 | 115 |
| PB-40-0.08 | 40x0.08 | 8.9 | 131 |
| PB-50-0.08 | 50x0.08 | 10.9 | 161 |
| PB-10-0.18 | 10x0.18 | 6.2 | 174 |
| PB-15-0.18 | 15x0.18 | 7.0 | 178 |
| PB-20-0.18 | 20x0.18 | 7.6 | 183 |
| PB-26-0.18 | 26x0.18 | 8.8 | 192 |
| PB-32-0.18 | 32x0.18 | 9.5 | 198 |
| PB-40-0.18 | 40x0.18 | 10.8 | 205 |
| PB-50-0.18 | 50x0.18 | 11.4 | 215 |
Our products have a wide range of applications and guaranteed quality
