Encoder Signal Connection Cable

Oil resistant, wear resistant, bending resistant, with shield, twisted pair, anti-Jamming, hydrolysis resistant, thermostable and cold-resistant

Inquire Now Download

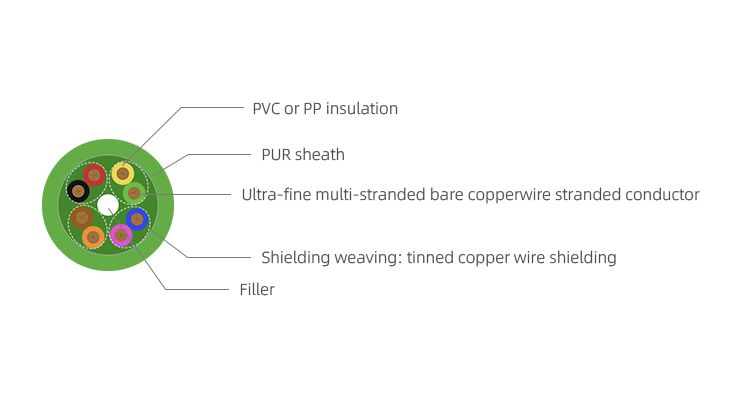

Sketch Map

Technical Parameter

Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).

Insulation: PE.

Core wire color: color differentiation.

Twisting method: The core wire is twisted together with the tensile center.

Partial shielding: The twisted pair signal core wire is shielded with tirned copper wire.

Twisted wire inner protection: There is a thin inner protection layer on the surface of the twisted pair signal core wire.

Total shielding: Tinned copper wire woven shielding, optical coverage of about85%.

Outer sheath: PUR polyurethane, adjusted to meet drag chain requirements: Colors can be matched according to customer requirements.

Minimum bending radius: drag chain:8xd，fixed:4xd.

Usage temperature range: drag chain: -25℃ to+80℃，Fixed:-40℃ to +80℃.

Rated voltage: 300/300V.

Test voltage: 4000V.

Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.

Product Characteristics

Has excellent UV resistance, mechanical stress resistance, and oil resistance;

Flame retardancy in accordance with IEC 60332-1-2.CEI 20-35.FT1. standards;

Designed for bending cycles up to 10 million or more in power drag dhains.

Application Scope

Heavy load extension lines in power drag chain applications;

Meet the requirements for electromagnetic interference resistance;

Connecting cable between servo controller and encoder/resolver;

Suitable for connecting servo controllers and tachogenerators;

Used for power drag chains or mobile mechanical components;

Especially suitable for assembly lines, production lines, and damp areas of machine tools and transmission lines;

Can he used for outdoor mobile occasions;

Encoders and decomposers suitable for leading manufacturers' production.
