Oil resistant, wear resistant, bending resistant, anti-Jamming, hydrolysis resistant, thermostable and cold-resistant

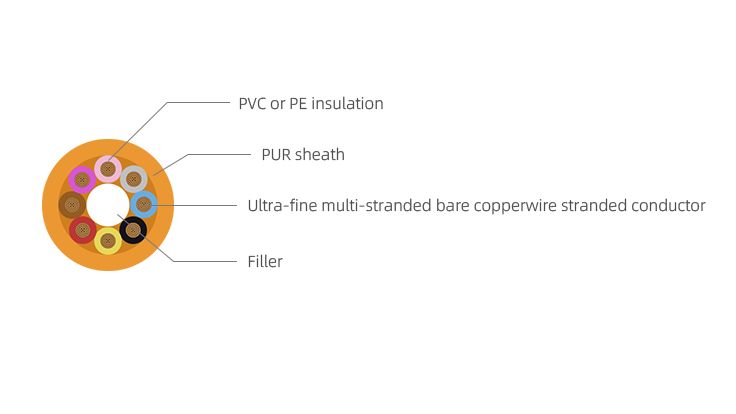

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor.(six categories).
Insulation: PE insulation mixture.
Core wire color: color differentiation.
Core wire stranding: stranding with short pitch or bundle splitting.
Outer sheath; PUR po vurethane, adiusted to meet drag chain requirements;colors can be matched according to customer reauirements.
Minimum bending radius: mobile application: 8xd; Fixed installation: 5xd.
Operating temperature range: Mobile installation: -5℃ to +80℃; Fixed installation: -30℃to+80℃.
Rated voltage: 300V.
Test voltage: 2000V.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
It has flexibility and durability;
Flame retardancy in accordance with IEC 60332-1-2,CEI 20-35,FT1,VW-1;
Designed for bending cvcles up to 5-10 million times in power drag dhains.
Application Scope
Suitable for data transmission. measurement. and electronic control eauipment.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| DP-800P-2-0.14 | 2x0.14 | 3.2 | 10 |
| DP-800P-3-0.14 | 3x0.14 | 3.4 | 13 |
| DP-800P-4-0.14 | 4x0.14 | 3.6 | 15.9 |
| DP-800P-5-0.14 | 5x0.14 | 3.9 | 19.2 |
| DP-800P-7-0.14 | 7x0.14 | 4.2 | 25.4 |
| DP-800P-8-0.14 | 8x0.14 | 4.9 | 32.2 |
| DP-800P-12-0.14 | 12x0.14 | 5.6 | 45.4 |
| DP-800P-16-0.14 | 16x0.14 | 6.1 | 56.1 |
| DP-800P-20-0.14 | 20x0.14 | 7.0 | 67.8 |
| DP-800P-25-0.14 | 25x0.14 | 7.8 | 84.2 |
| DP-800P-40-0.14 | 40x0.14 | 9.1 | 136.1 |
| DP-800P-50-0.14 | 50x0.14 | 10.4 | 167.9 |
| DP-800P-2-0.25 | 2x0.25 | 3.8 | 15 |
| DP-800P-3-0.25 | 3x0.25 | 4 | 19 |
| DP-800P-4-0.25 | 4x0.25 | 4.3 | 23.2 |
| DP-800P-5-0.25 | 5x0.25 | 4.7 | 28 |
| DP-800P-7-0.25 | 7x0.25 | 5.1 | 39 |
| DP-800P-8-0.25 | 8x0.25 | 6.2 | 46.2 |
| DP-800P-12-0.25 | 12x0.25 | 7.0 | 64 |
| DP-800P-16-0.25 | 16x0.25 | 7.7 | 81.3 |
| DP-800P-20-0.25 | 20x0.25 | 8.6 | 99 |
| DP-800P-25-0.25 | 25x0.25 | 9.6 | 131 |
| DP-800P-40-0.25 | 40x0.25 | 12 | 197 |
| DP-800P-50-0.25 | 50x0.25 | 12.9 | 254.1 |
| DP-800P-2-0.34 | 2x0.34 | 4.2 | 22 |
| DP-800P-3-0.34 | 3x0.34 | 4.4 | 28 |
| DP-800P-4-0.34 | 4x0.34 | 4.8 | 40.2 |
| DP-800P-5-0.34 | 5x0.34 | 5.5 | 50.8 |
| DP-800P-7-0.34 | 7x0.34 | 5.9 | 59 |
| DP-800P-8-0.34 | 8x0.34 | 6.2 | 66.2 |
| DP-800P-12-0.34 | 12x0.34 | 7.8 | 99 |
| DP-800P-16-0.34 | 16x0.34 | 8.7 | 124 |
| DP-800P-20-0.34 | 20x0.34 | 9.6 | 156.3 |
| DP-800P-25-0.34 | 25x0.34 | 11.2 | 187 |
| DP-800P-40-0.34 | 40x0.34 | 13.5 | 314 |
| DP-800P-50-0.34 | 50x0.34 | 15 | 404 |
