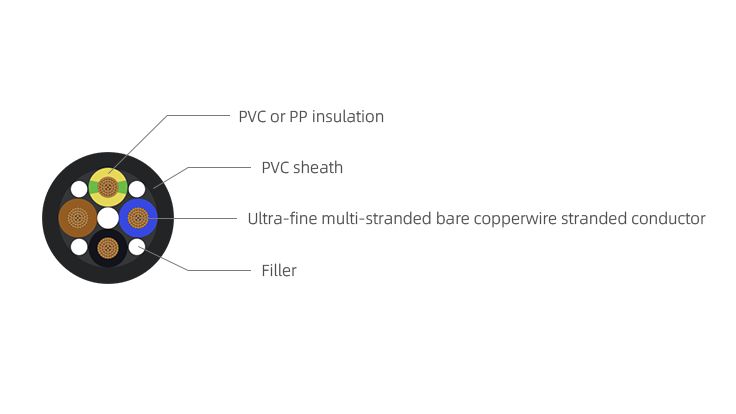

Sketch Map
Scope of Use
Applied to the interior of elevators for motor power transmission.
Technical Parameter
Conductor material: IEC60228 for class 5
Insulation material: PVC/DIEC60227-1
Low ignition halogen-free flame retardant(LSOH),low smoke in accordance with IEC61034-2
Halogen free according to IEC60754-2,flame retardant grade according to IEC60332-3 B or C
Sheath material: PVC/ST5IEC60227-1.
Low smoke halogen-free flame retardant (LSOH) Low smoke meets IEC61034-2.
Halogen-free according toIEC60754-2, flame retardant grade according to IEC60332-3B or C.
LSOH optional features: anti mouse，anti termite, low smoke and halogen-free cross-linking
Rated voltage: The rated voltage applicable to this product is 0.6/lkV and below.
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Working Temperature
The maximum temperature of the conductor during normal use is 70℃
PVC material is suitable for use in environments ranging from 0℃ to 40℃:
LSOH materials are suitable for use in environments ranging from -40°C to 40℃.
Shielding Materials
Copper wire braiding; Aluminum foil wrapping.
Matters Needing Attention
Note: Processing can be customized according to customer requirements, with special requirements such as low temperature resistance of-30 ℃ and fame retardancy.
Product Standards
| Model | Specification(Number of cores*cross-sectional area mm²) | Lower limit of cable outer diameter(mm) | Higher limit of cable outer diameter(mm) | Rated voltage U0/U(V) |
| RVV | 4*4 | 11.80 | 14.60 | 300/500 |
| RVV | 4*6 | 14.00 | 16.00 | 300/500 |
| RVV | 4*10 | 17.30 | 19.00 | 300/500 |
| RVV | 5*4 | 13.30 | 16.50 | 300/500 |
| RVV | 5*6 | 15.30 | 17.50 | 300/500 |
| RVV | 2*6 | 12.50 | 14.50 | 300/500 |
| RVV | 2*10 | 14.10 | 17.30 | 300/500 |
| RVV | 3*4 | 10.70 | 14.00 | 300/500 |
| RVV | 3*6 | 12.00 | 14.80 | 300/500 |
| RVV | 7*6 | 16.50 | 20.10 | 300/500 |
| RVV | 7*10 | 20.70 | 25.50 | 300/500 |
| Product standard:JB/T 8734.3, EN 50525, company standard | ||||
Our products have a wide range of applications and guaranteed quality
