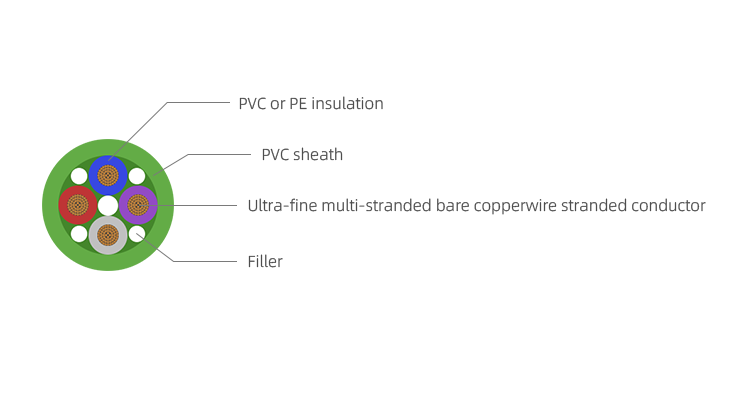

Sketch Map
Technical Parameter
Conductor: Ultra-fine multi-stranded bare copper wire stranded conductor(six categories).
Insulation: Use special PVC above 0.75mm2, and use PP insulation mixture below 0.5㎟.
Core wire color: color differentiation or black core wire white numerical identification
Core wire stranding: Core wires are twisted together at short pitches when the number of cores is less than 12. while core wires are twisted in bundles when the number of cores is more than 12.
Outer sheath: Low viscosity and wear-resistant PVC, adjusted to meet drag chain requirements;Colors can be matched according to customer requirements.
Minimum bending radius: mobile application: 7.5xd; Fixed installation: 4xd.
Operating temperature range:Mobile installation:-5℃to+70℃;Fixed installation:-20℃to +80℃
Rated voltage: number of cores<12: 300/500V;Core count<12 (0.25-0.34): 300/300V; Number of cores≥12:300/300V.
Test voltage: 4000V
Material: Customizable to suit different needs and applications with materials like PUR, PVC, TPE, TPEE, LSOH, PP, HDPE and more. From standard to specialized, we provide flexibility to meet diverse requirements. Contact us for cables solutions.
Product Characteristics
Has excellent Wear resistance bending resistance and oil resistance;
Flame retardancy meets IEC60332-1-2CEI20-35，VW-1:
Designed for bending cycles up to 5-10 million times in power drag chains.
Application Scope
Mobile use in automatic machine drag chains;
Used in mechanical processing, Wood/stone processing industry, packaging industry, conVeving systems, and regulating equipment drag chains;
Mainly used indoors.
Product Standards
| Material code | Number of cores and nominal cross-section of conductor(mm²) | Approximate outer diameter(mm²) | Cable weight kg/km |
| FD-700Y-2-0.5 | 2*0.5 | 5.3 | 40 |
| FD-700Y-3-0.5 | 3*0.5 | 5.7 | 48 |
| FD-700Y-4-0.5 | 4*0.5 | 6.3 | 58 |
| FD-700Y-5-0.5 | 5*0.5 | 6.8 | 67 |
| FD-700Y-7-0.5 | 7*0.5 | 8.0 | 88 |
| FD-700Y-12-0.5 | 12*0.5 | 9.5 | 136 |
| FD-700Y-18-0.5 | 18*0.5 | 11.8 | 185 |
| FD-700Y-25-0.5 | 25*0.5 | 13.5 | 250 |
| FD-700Y-30-0.5 | 30*0.5 | 14.3 | 290 |
| FD-700Y-34-0.5 | 34*0.5 | 15.6 | 340 |
| FD-700Y-50-0.5 | 50*0.5 | 18.5 | 500 |
| FD-700Y-2-0.75 | 2*0.75 | 5.7 | 49 |
| FD-700Y-3-0.75 | 3*0.75 | 6.2 | 60 |
| FD-700Y-4-0.75 | 4*0.75 | 6.8 | 70 |
| FD-700Y-5-0.75 | 5*0.75 | 7.4 | 85 |
| FD-700Y-7-0.75 | 7*0.75 | 8.9 | 110 |
| FD-700Y-12-0.75 | 12*0.75 | 10.6 | 173 |
| FD-700Y-18-0.75 | 18*0.75 | 12.7 | 259 |
| FD-700Y-25-0.75 | 25*0.75 | 15.2 | 363 |
| FD-700Y-2-1.0 | 2*1.0 | 6.1 | 58 |
| FD-700Y-3-1.0 | 3*1.0 | 6.6 | 72 |
| FD-700Y-4-1.0 | 4*1.0 | 7.3 | 88 |
| FD-700Y-5-1.0 | 5*1.0 | 8.0 | 104 |
| FD-700Y-7-1.0 | 7*1.0 | 9.6 | 142 |
| FD-700Y-12-1.0 | 12*1.0 | 11.4 | 221 |
| FD-700Y-14-1.0 | 14*1.0 | 12.3 | 258 |
| FD-700Y-16-1.0 | 16*1.0 | 13.00 | 287 |
| FD-700Y-18-1.0 | 18*1.0 | 13.90 | 324 |
| FD-700Y-25-1.0 | 25*1.0 | 16.4 | 445 |
| FD-700Y-41-1.0 | 41*1.0 | 20.6 | 712 |
| FD-700Y-50-1.0 | 50*1.0 | 22.3 | 854 |
| FD-700Y-2-1.5 | 2*1.5 | 7.7 | 83 |
| FD-700Y-3-1.5 | 3*1.5 | 8.2 | 106 |
| FD-700Y-4-1.5 | 4*1.5 | 9.00 | 131 |
| FD-700Y-5-1.5 | 5*1.5 | 9.80 | 166 |
| FD-700Y-7-1.5 | 7*1.5 | 11.0 | 203 |
| FD-700Y-12-1.5 | 12*1.5 | 15.0 | 327 |
| FD-700Y-18-1.5 | 18*1.5 | 18.0 | 465 |
| FD-700Y-25-1.5 | 25*1.5 | 21.0 | 662 |
| FD-700Y-2-2.5 | 2*2.5 | 9.2 | 113 |
| FD-700Y-3-2.5 | 3*2.5 | 10.0 | 145 |
| FD-700Y-4-2.5 | 4*2.5 | 10.8 | 190 |
| FD-700Y-5-2.5 | 5*2.5 | 12.0 | 228 |
| FD-700Y-7-2.5 | 7*2.5 | 14.2 | 311 |
| FD-700Y-12-2.5 | 12*2.5 | 18.5 | 486 |
| FD-700Y-18-2.5 | 18*2.5 | 23.0 | 743 |
| FD-700Y-25-2.5 | 25*2.5 | 25.0.3 | 971 |
| FD-700Y-3-4.0 | 3*4.0 | 11.0 | 19.08 |
| FD-700Y-4-4.0 | 4*4.0 | 12.3 | 260 |
| FD-700Y-5-4.0 | 5*4.0 | 13.8 | 325 |
| FD-700Y-4-6.0 | 4*6.0 | 14.5 | 373 |
| FD-700Y-5-6.0 | 5*6.0 | 16.0 | 458 |
| FD-700Y-4-10.0 | 4*10.0 | 18.2 | 592 |
| FD-700Y-5-10.0 | 5*10.0 | 20.6 | 762 |
| FD-700Y-4-16.0 | 4*16.0 | 21.5 | 900 |
| FD-700Y-5-16.0 | 5*16.0 | 24.5 | 1119 |
| FD-700Y-4-25.0 | 4*25.0 | 28.5 | 1445 |
| FD-700Y-4-35.0 | 4*35.0 | 31.0 | 1894 |
